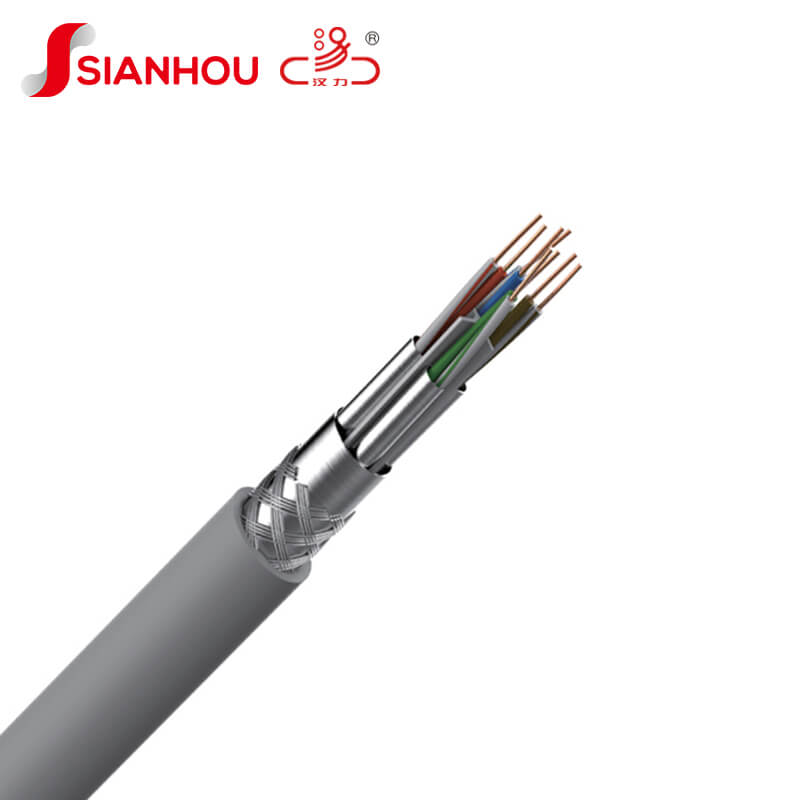

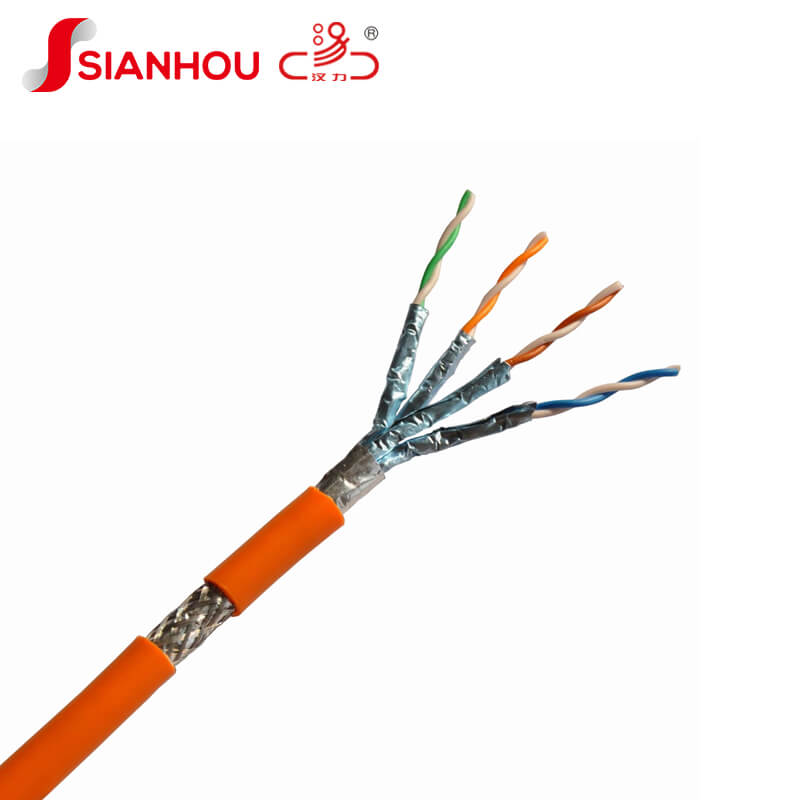

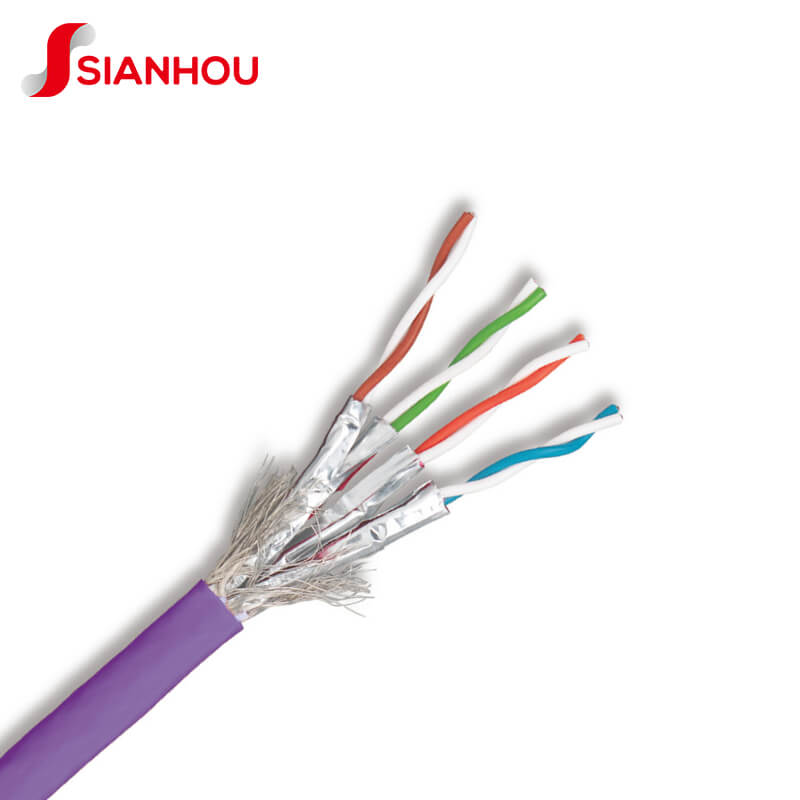

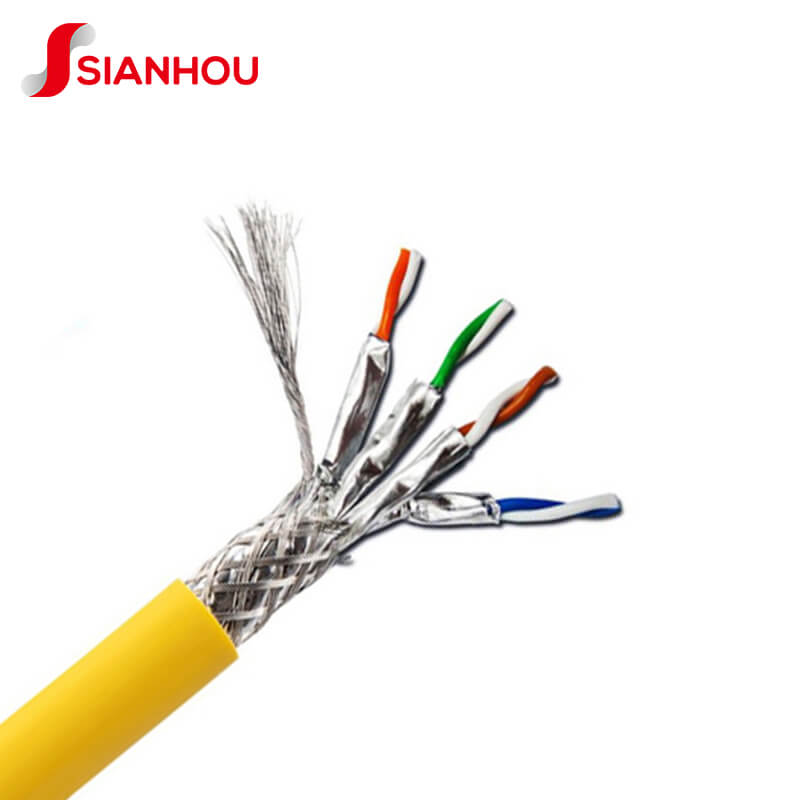

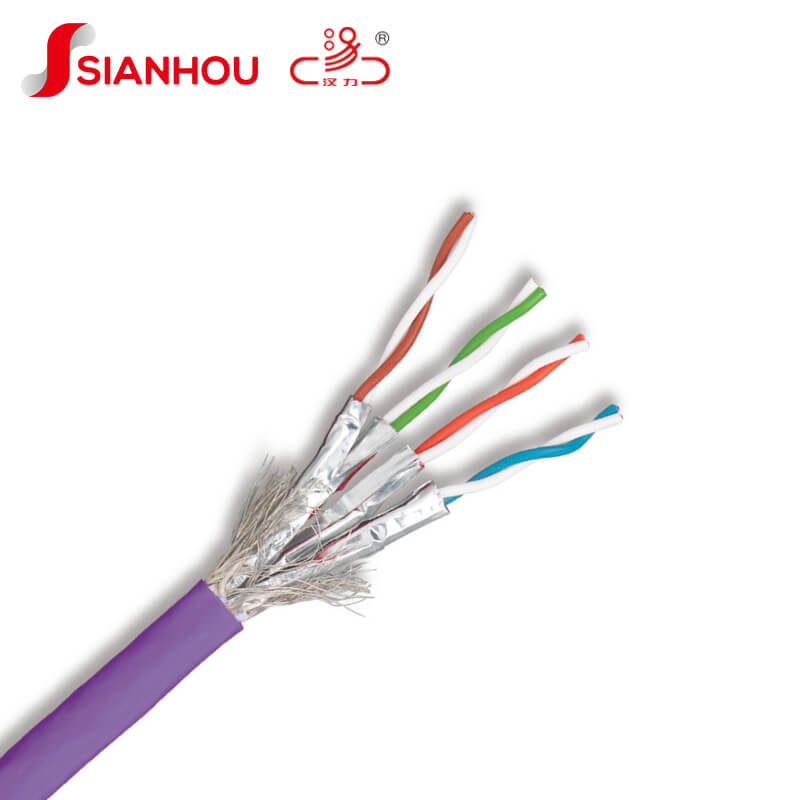

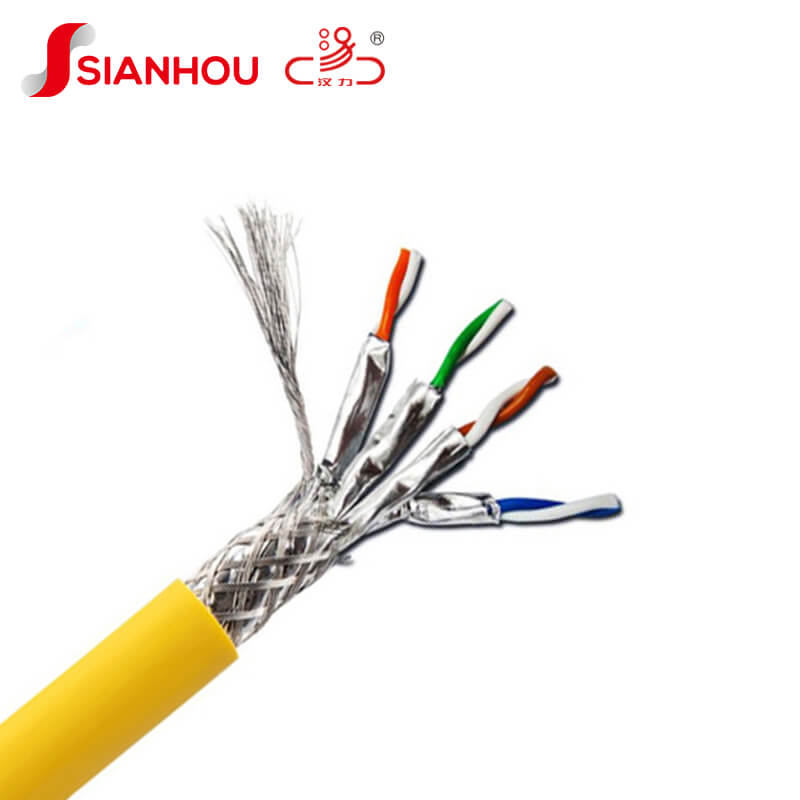

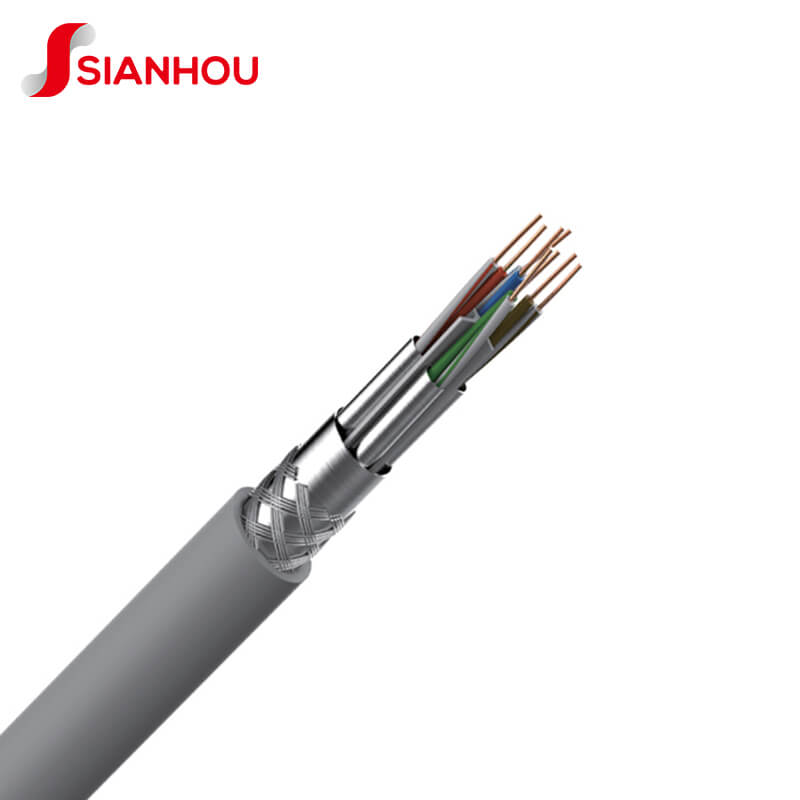

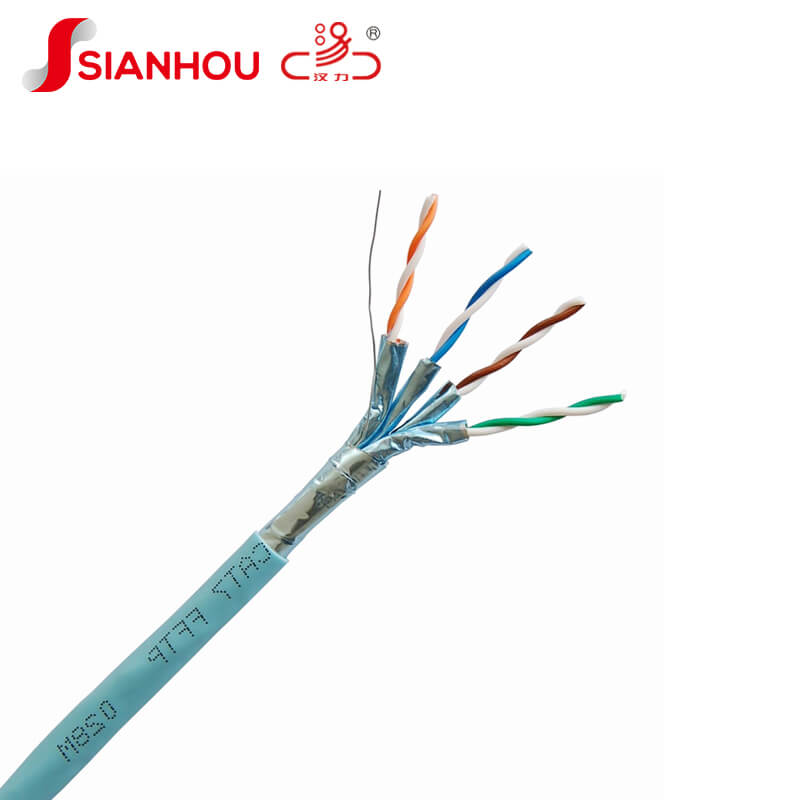

CAT7

These cables used in data transmission systems that work up to 10Gbps/s.      The standard was designed for use within commercial premises that may consist of either a single building or of multiple buildings on campus.

Fire-Retardant       NetworkNetwork System

Cold-Resistant       Security System

Standard Specification

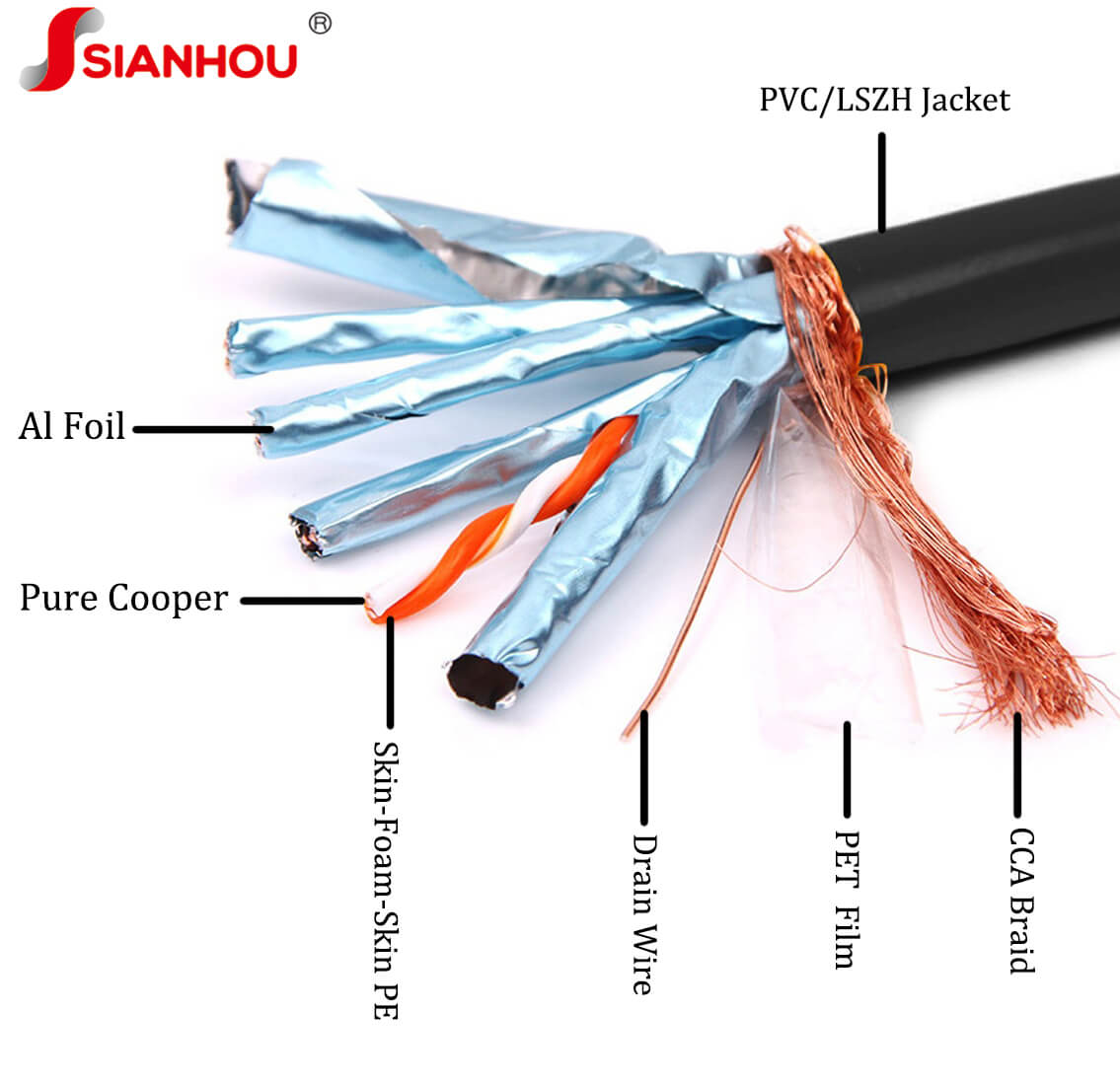

Conductor                                       Solid Bare Copper
AWG                                               23
Conductor Dia(mm)                        0.583±0.02
Insulation Average Thickness        0.419mm(Min.at any point:0.369mm)
Jacket                                            PVC
Sheath Average Thickness           0.05mm(Min.at any point:0.40mm)
Sheath Diameter                           7.4±0.3mm
Elongation                                     Min.100%
Tensile Strength                            Min.1.407Kg/mm2
Aging at 100℃ for 168Hrs            Min.elongation retention:50%
                                                      Min.tensile strength:75%
Ripcord                                         Yes



Frequency
(Mhz)
Attenuation
(dB/100M@20℃)
Next
(dB,Min)
Power Sum
(dB,Min)
1.02.080.077.0
4.03.780.077.0
10.05.980.077.0
16.07.480.077.0
20.08.380.077.0
31.2510.480.077.0
62.514.975.572.5
100.019.072.469.4
155.024.069.566.5
200.027.567.964.9
300.034.265.262.2
600.050.160.757.7
