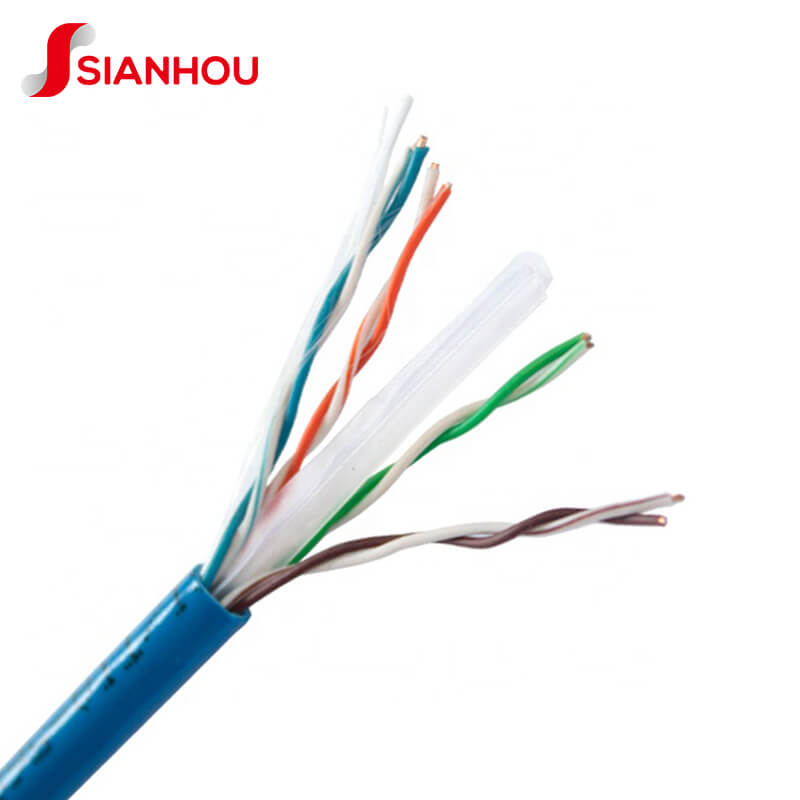

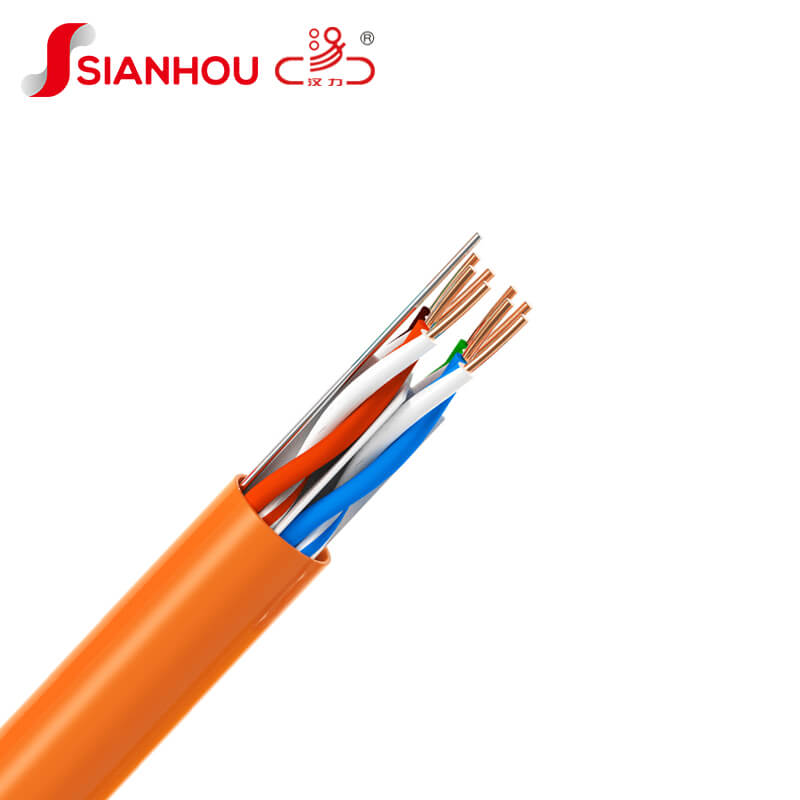

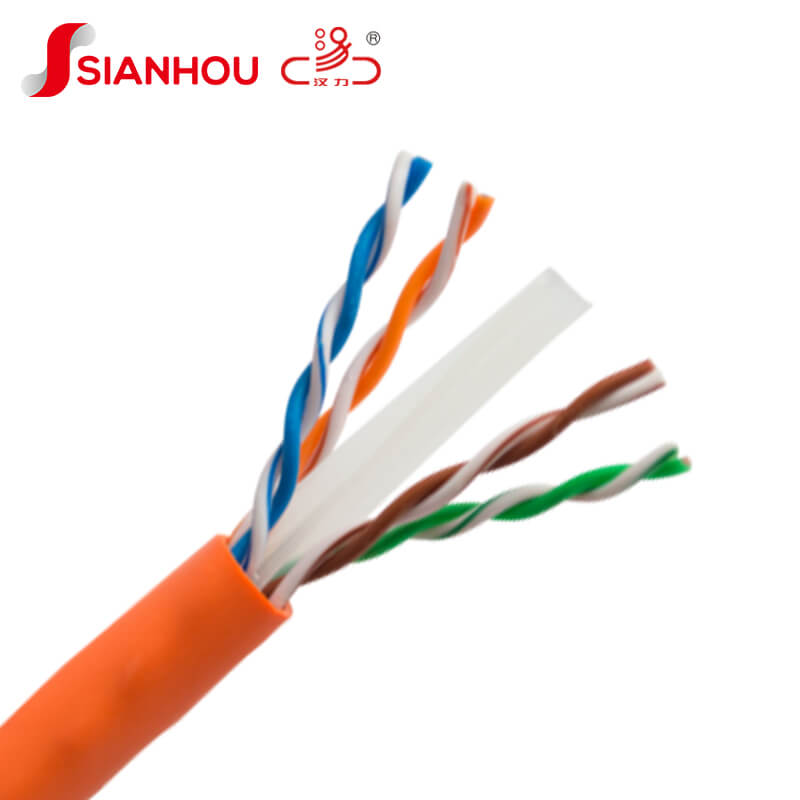

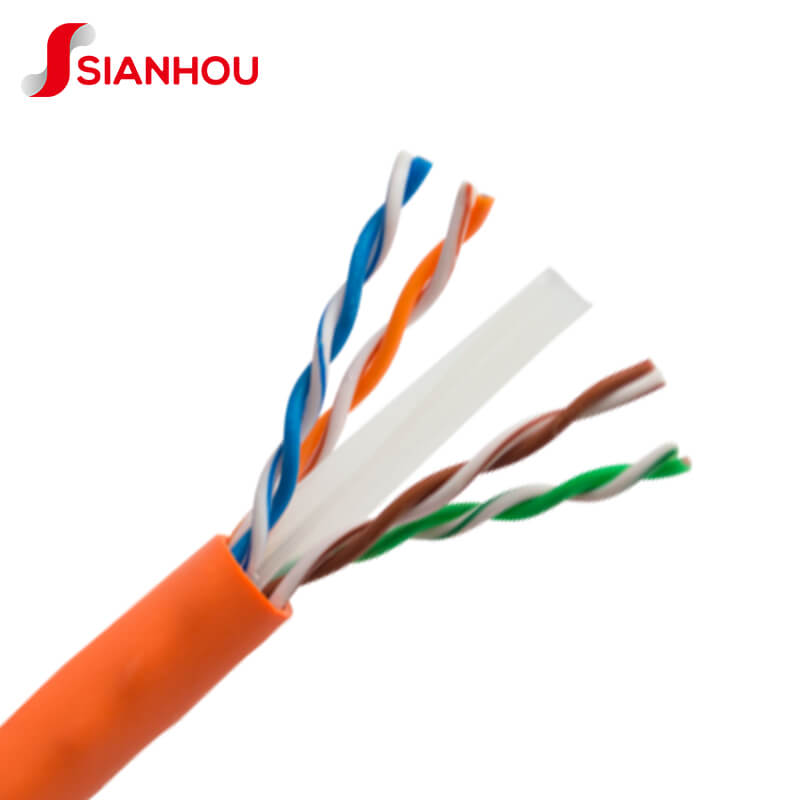

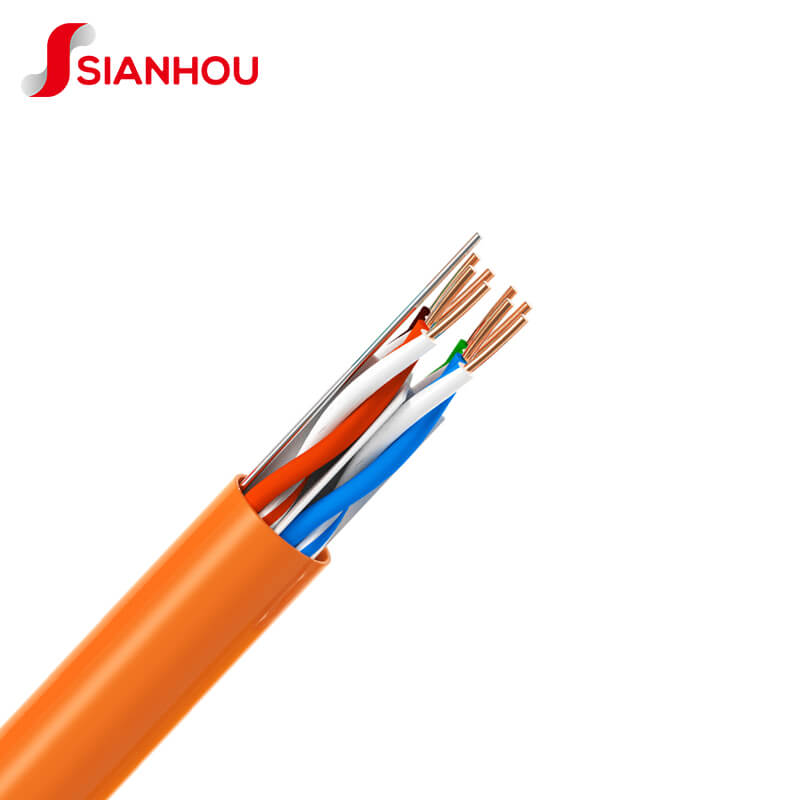

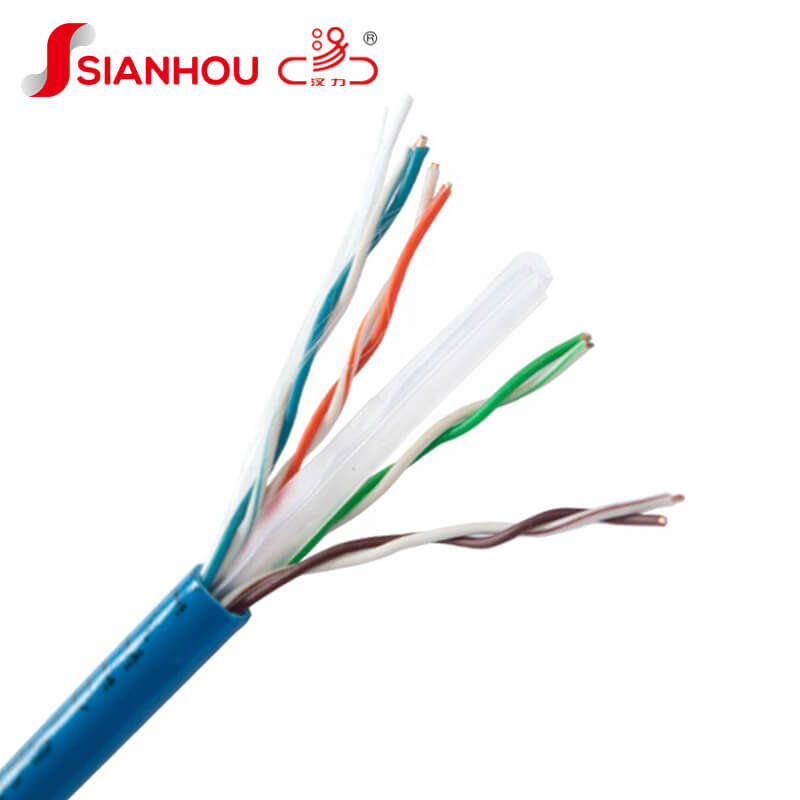

UTP CAT6

These cables used in data transmission systems that work up to 200Mbit/s.
Particularly preferred in the offices, buildings where many terminals found.

Fire-Retardant       NetworkNetwork System

Cold-Resistant       Security System

Standard Specification
Conductor                            Solid Bare Copper/CCA
AWG                                    23
Conductor Dia(mm)             0.57
Insulation                             PE
Average thickness               0.22±0.03mm
Min point thickness              0.18±0.03mm
Insulation Dia                       1.02±0.03mm
Twisting lay length                30 underneath
Cabling lay length                 200 underneath
Jacket                                   PVC
Average thickness                0.5
Min point thickness               0.46
Outer Dia                              6.0±1.0mm
RipCord                                Yes



Frequency
(Mhz)
Return Loss
(dB)
Attenuation
(dB/100m)
Next
(dB)
Acr
(dB)
Psnext
(dB/100m)
Elefxt
(dB/100m)
Pselext
(dB/100m)
Delay
(ns/100m)
1.020.02.062.363.062.363.860.8570.0
4.021.04.1 56.352.063.351.748.7552.0
8.024.55.851.846.048.345.742.7546.7
10.025.06.550.344.047.343.840.8545.4
16.025.08.247.339.044.339.736.7543.0
20.025.09.345.837.042.837.734.7542.0
25.024.310.444.334.041.335.832.8541.2
31.323.611.742.931.039.333.930.9540.4
62.521.517.038.421.035.427.824.8536.6
100.020.122.035.313.032.323.820.8537.6
