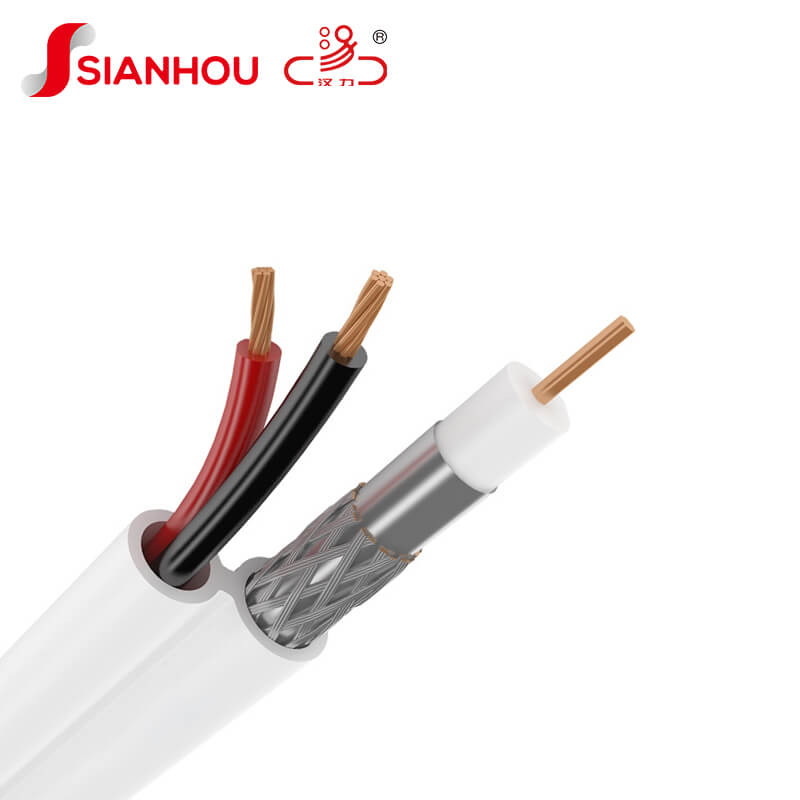

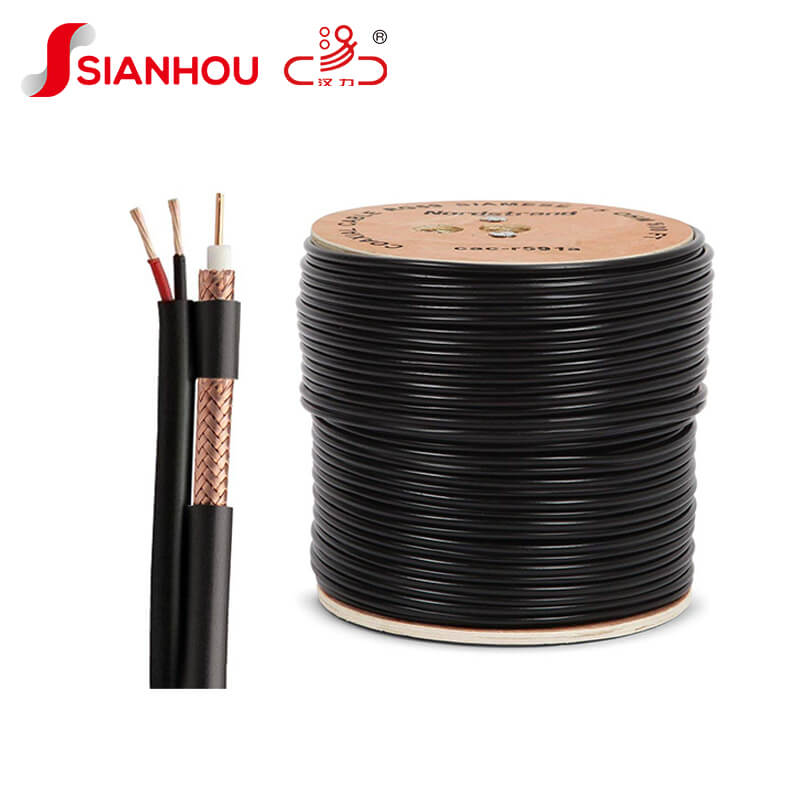

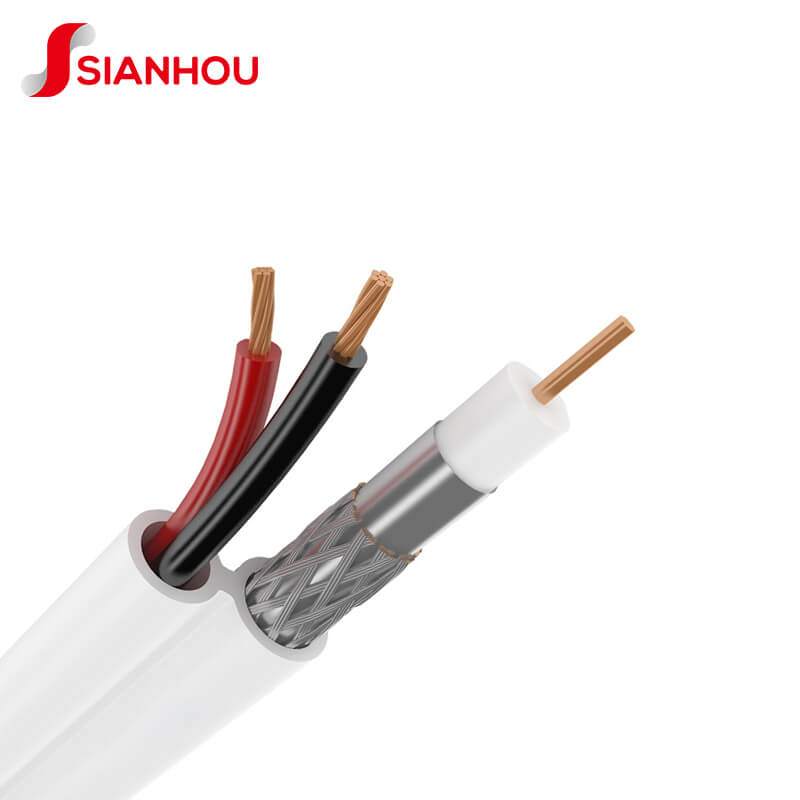

RG59+2C provides simultaneous transmission of image, voice, alarm and power signals in the application of closed-circuit camera systems.
Apply for a whole range of Analog cameras.
UV-Resistant
Fire-Retardant
Cold-Resistant
Security System
Specification Customized Available
| Physical Construction | ||
|---|---|---|
| Conductor | Material Nom.Dia | CU/CCA/CCA 20AWG |
| Delectric | Material Nom.Dia | Soild PE/Foam PE 3.66mm |
Shield | Construction Foil Material Braid Material Braid Coverage | With Foil/Without Foil+Braid AL Foil/CU Color Foil CU/CCA/AL 40%-95% |
Jacket | Material Nom.Thick Nom.Dia | PVC 0.8mm 6.1±0.2mm |
| Power | Material | 2*16*0.2mm(0.5mm²）CCA/CU |
| Electrical Characteristics | |||
|---|---|---|---|
| Nominal Impendence(Ω） | 75±3 | ||
| Nominal Velocity of Propagation(%) | 85 | ||
| Nominal Capacitance(pF/m) | 50 | ||
| Sparker Test(VAC) | 4000 | ||
| SRL(dB) | ≥20 | ||
| Frequency(MHZ) | Maximum(dB/100FT) | Maximum(dB/100m) | |
| 5 | 0.86 | 2.82 | |
| 55 | 2.05 | 6.73 | |
| 187 | 3.60 | 11.81 | |
| 300 | 4.45 | 14.60 | |
| 450 | 5.40 | 17.72 | |
| Attenuation(dB/100M) | 600 | 6.20 | 20.34 |
| [@68℉/20℃] | 750 | 6.98 | 22.87 |
| 865 | 7.52 | 24.67 | |
| 1000 | 8.13 | 26.64 | |
| 1200 | 8.97 | 29.40 | |
| 1450 | 9.89 | 32.41 | |
| 1800 | 11.81 | 38.72 | |
| 3000 | 14.30 | 46.90 |
