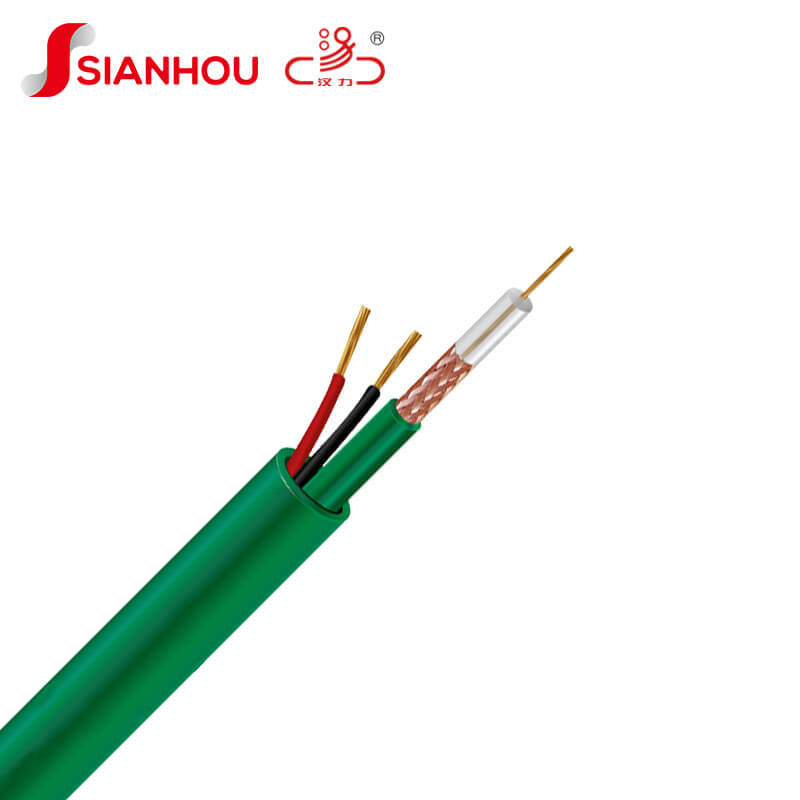

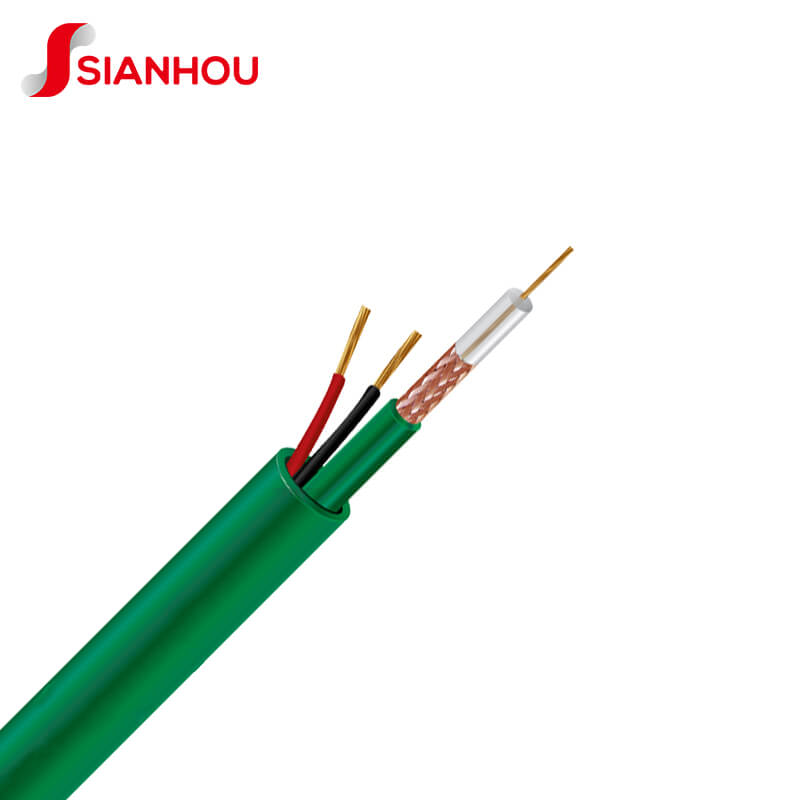

KX7+2C provides simultaneous transmission of image, voice, alarm and power signals in the application of closed-circuit camera systems.
Apply for a whole range of Analog cameras.
UV-Resistant
Fire-Retardant
Cold-Resistant
Security System
Specification Customized Available
| Physical Construction | ||
|---|---|---|
| Conductor | Material | Cu |
| Nom.Dia | 7/0.2mm | |
| Delectric | Material | Solid PE |
| Nom.Dia | 3.70mm | |
| Shield | Material | CU/CCA Braid |
| Coverage | 80%-95% | |
| Jacket | Material | PVC |
| Nom.Dia | 6.10±0.1mm |
| Electrical Characteristics | ||
|---|---|---|
| Nominal Impendence(Ω） | 75±3 | |
| Nominal Velocity of Propagation(%) | 66 | |
| Nominal Capacitance(pF/m) | 67±2 | |
| Sparker Test(VAC) | 3000 | |
| SRL(dB) | 20 | |
| Frequency(MHZ) | Maximum(dB/100m) | |
| 10 | 5.0 | |
| 50 | 8.1 | |
| 100 | 13.0 | |
| Attenuation [@68℉/20℃] | 200 | 18.5 |
| 400 | 22.5 | |
| 800 | 34.5 | |
| 950 | 37.5 | |
| 1000 | 45.0 |
