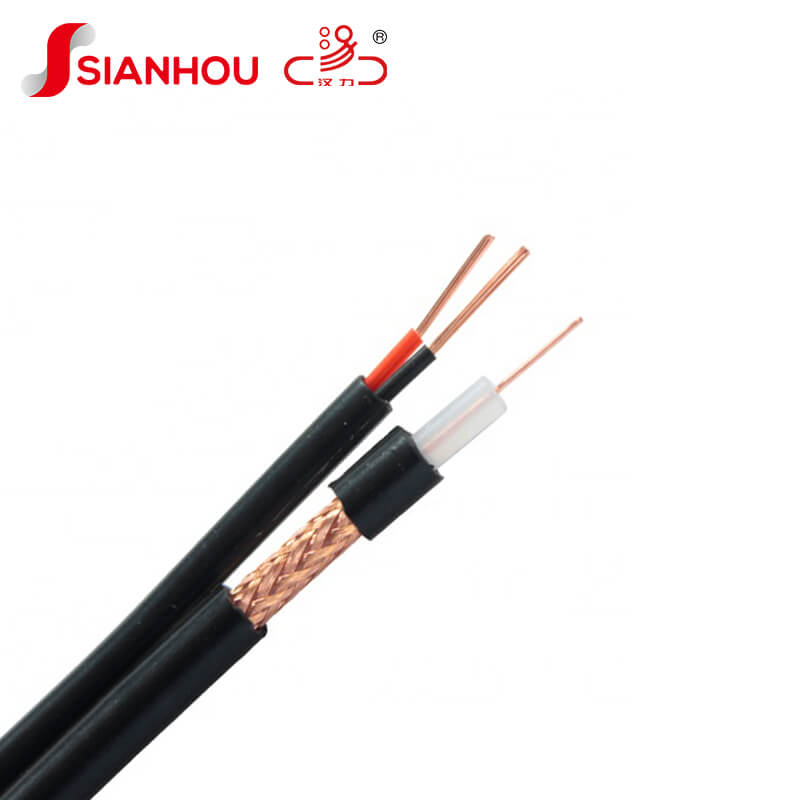

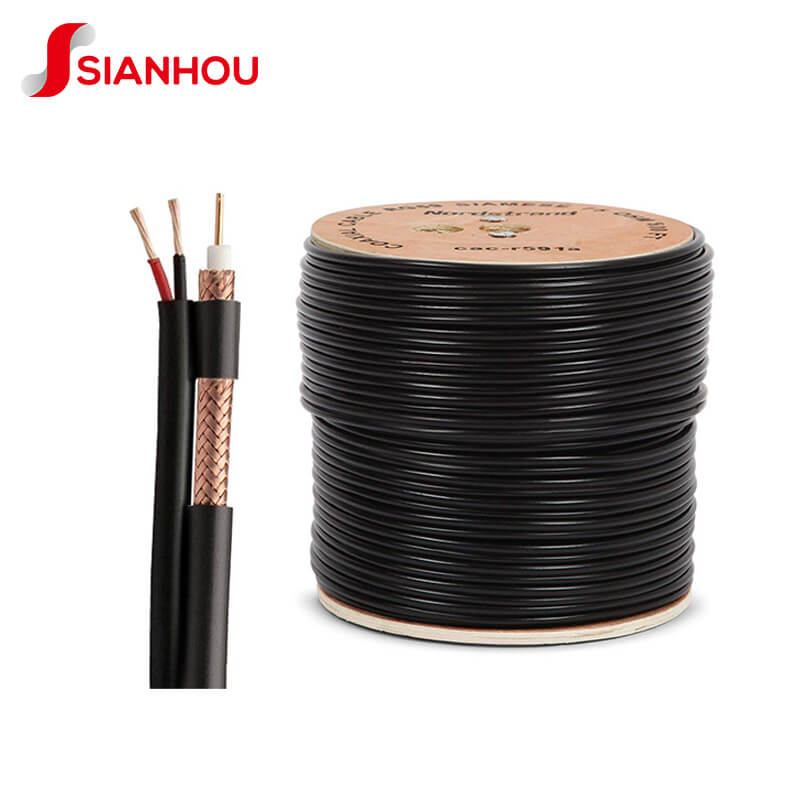

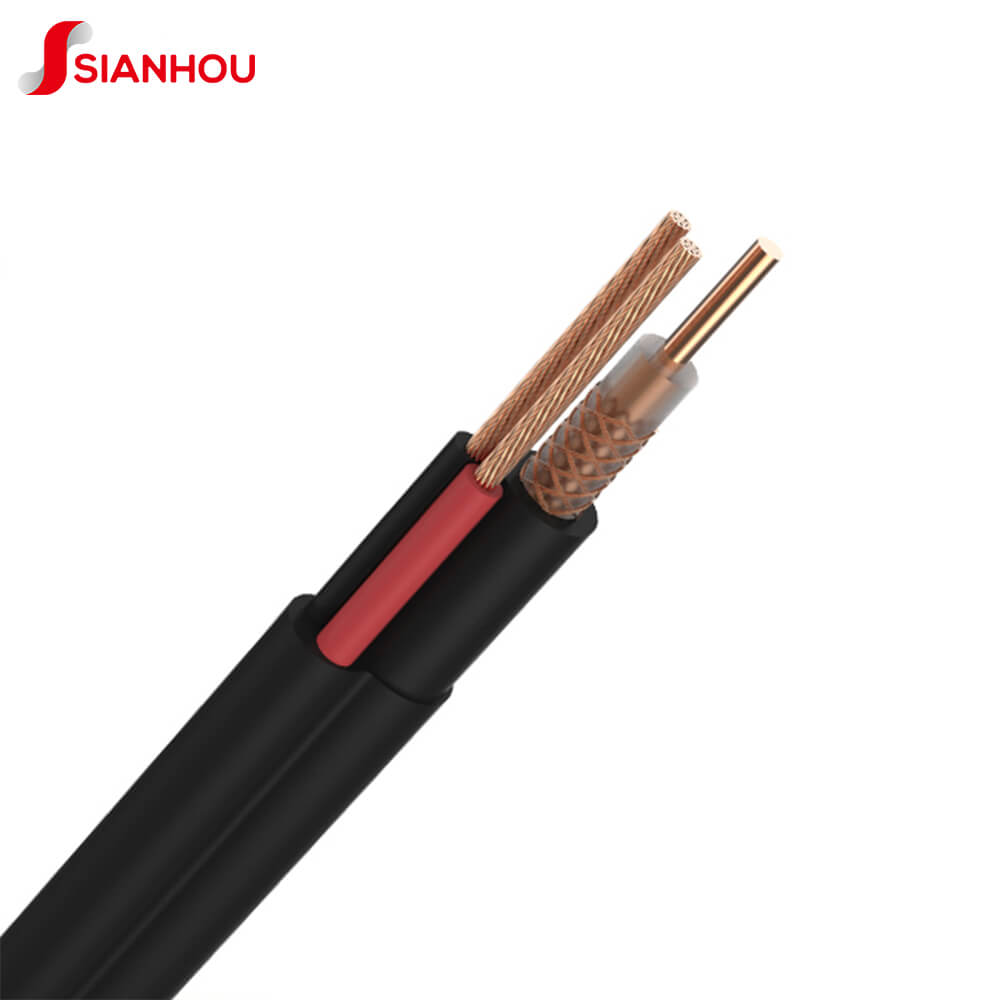

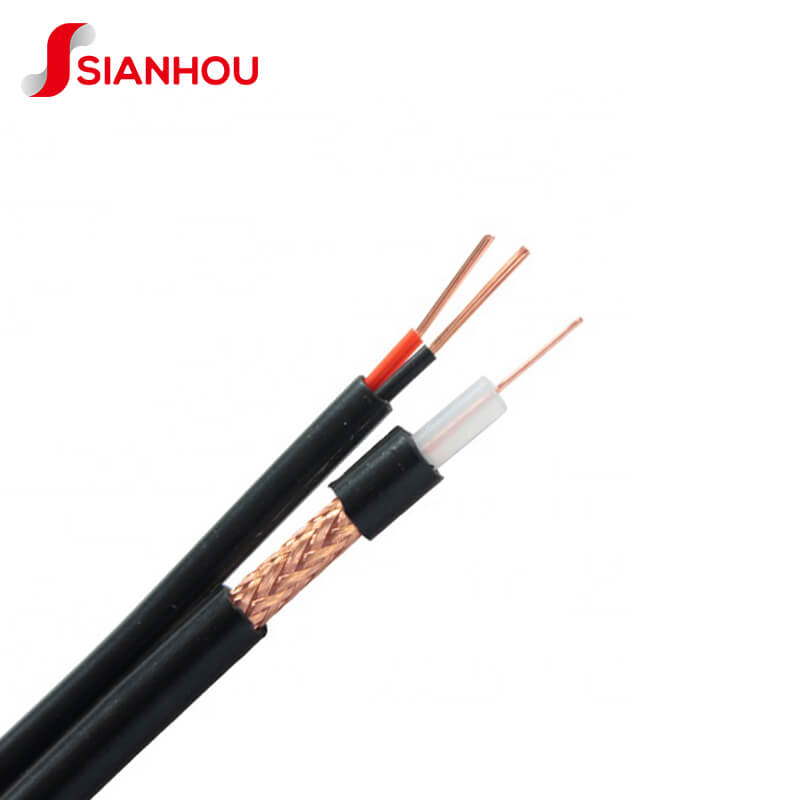

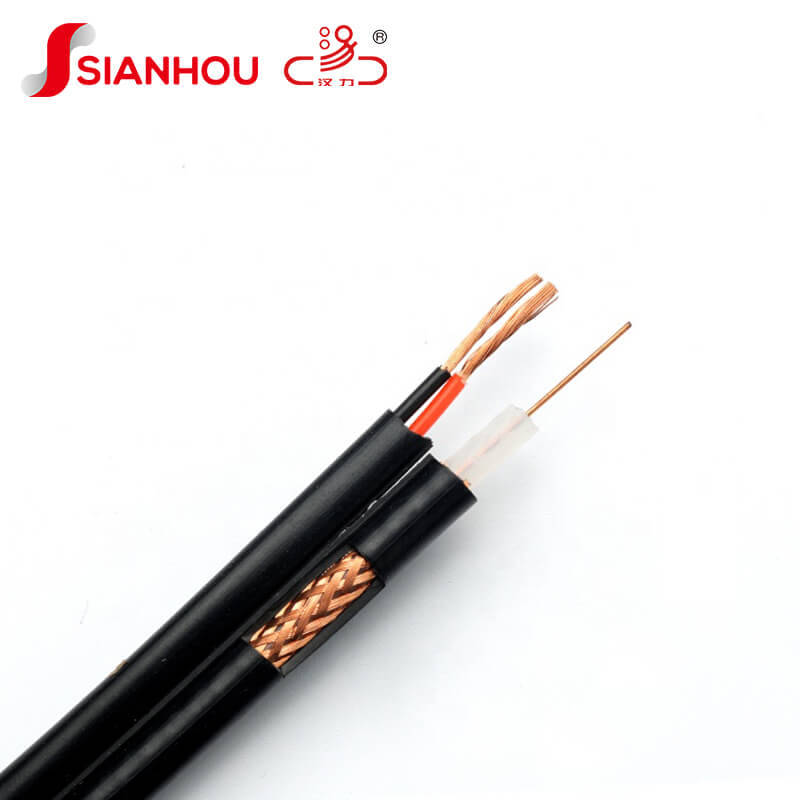

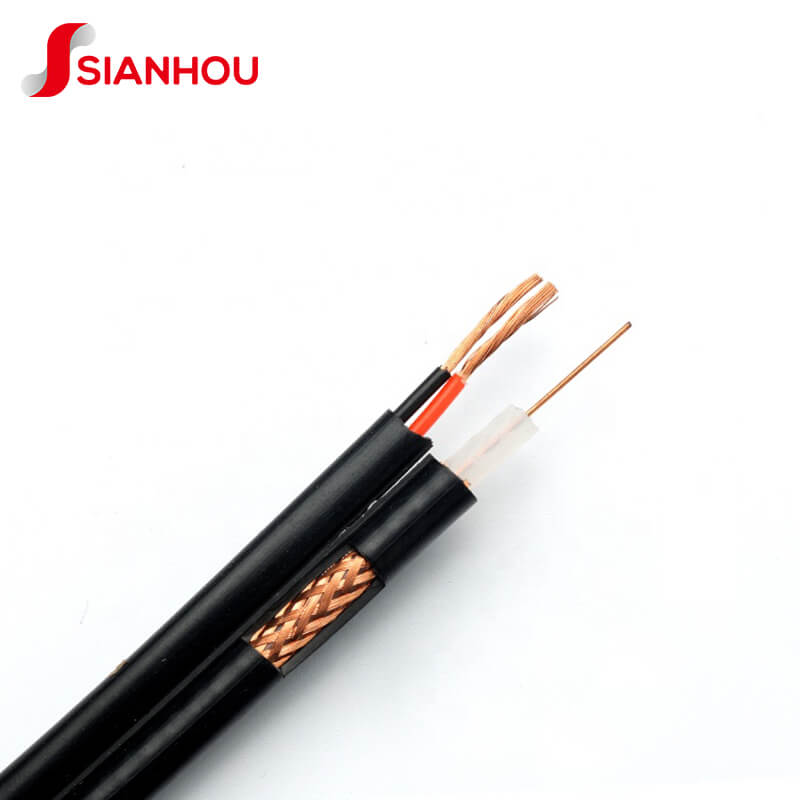

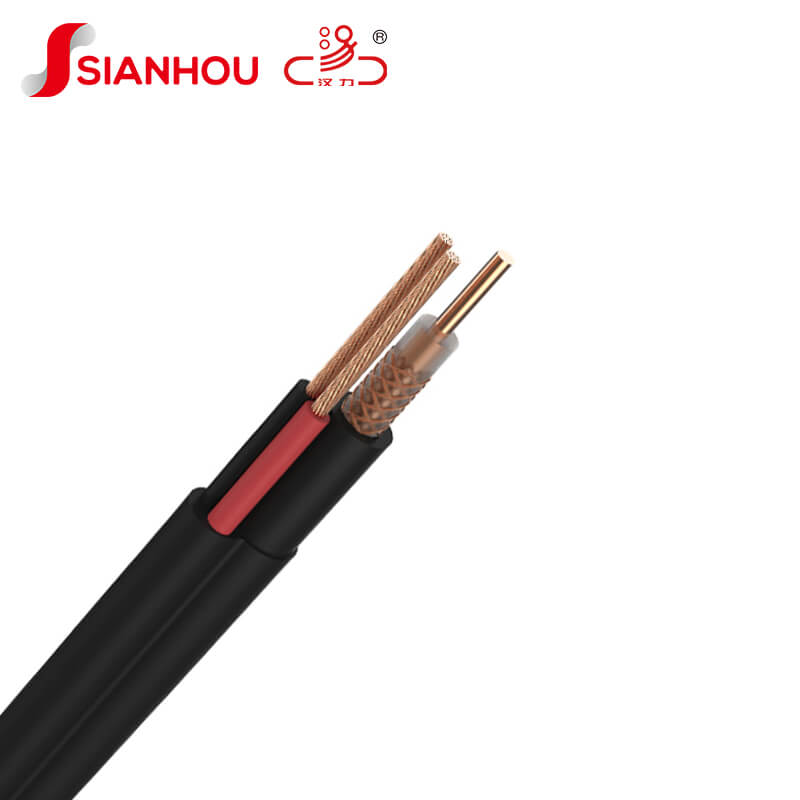

RG59+2C RVV0.75mm²

RG59+2C provides simultaneous transmission of image, voice, alarm and power signals in the application of closed-circuit camera systems.

Apply for a whole range of Analog cameras.

UV-Resistant         Fire-Retardant

Cold-Resistant       Security System

Specification Customized Available

Physical Construction
ConductorMaterial
Nom.Dia
CU/CCA/CCA
20AWG
DelectricMaterial
Nom.Dia
Soild PE/Foam PE
3.66mm
ShieldConstruction
Foil Material
Braid Material
Braid Coverage
With Foil/Without Foil+Braid
AL Foil/CU Color Foil
CU/CCA/AL
40%-95%
JacketMaterial
Nom.Thick
Nom.Dia
PVC
0.8mm
6.1±0.2mm
PowerMaterial2*7*0.37mm(0.75mm²)CCA/CU
Electrical Characteristics
Nominal Impendence(Ω)75±3
Nominal Velocity of Propagation(%)85
Nominal Capacitance(pF/m)50
Sparker Test(VAC)4000
SRL(dB)≥20
Frequency(MHZ)Maximum(dB/100FT)Maximum(dB/100m)
50.862.82
552.056.73
1873.6011.81
3004.4514.60
4505.4017.72
Attenuation(dB/100M)6006.2020.34
[@68℉/20℃]7506.9822.87
8657.5224.67
10008.1326.64
12008.9729.40
14509.8932.41
180011.8138.72
300014.3046.90
