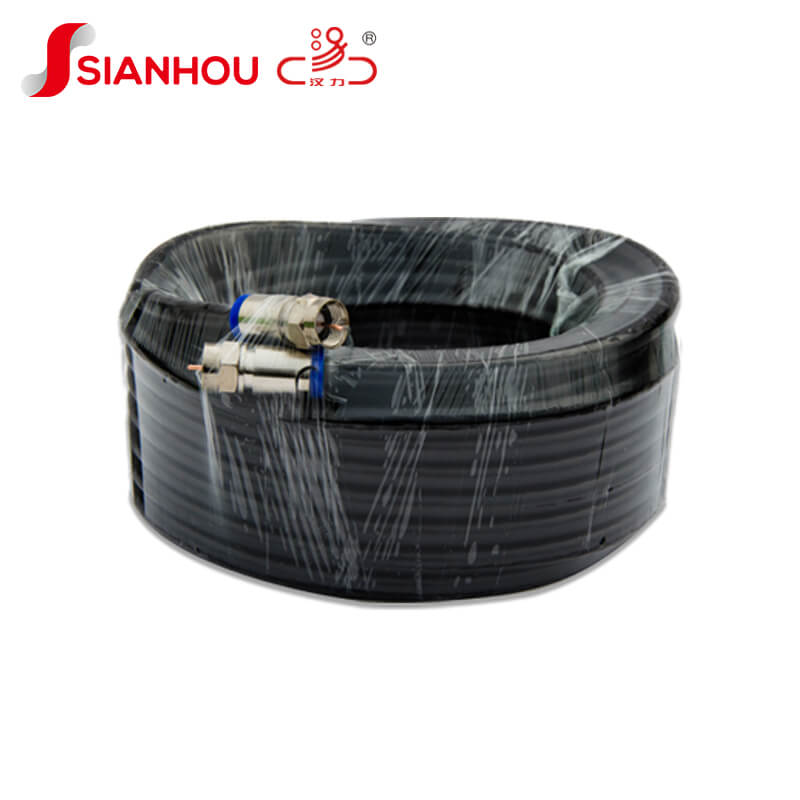

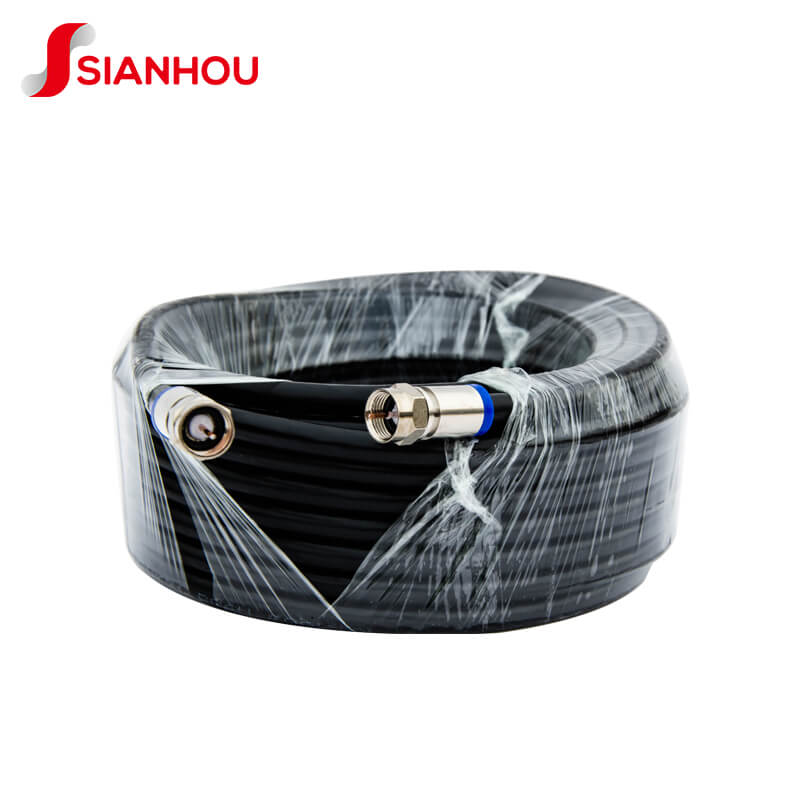

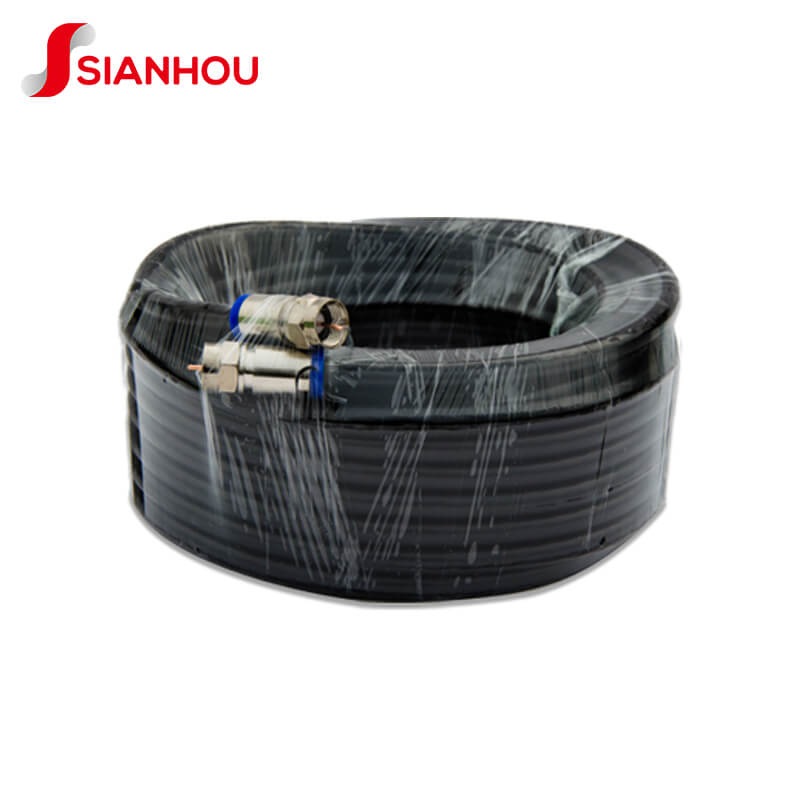

RG6 with Connector Pre-installed

Used in low attenuation required systems such as indoor CATV

CCTV distribution and SATV satellite system as connection cable

UV-Resistant        Fire-Retardant

Cold-Resistant       Suitable for TV system

Specification Customized Available

Physical Construction
Standard ShieldTri-ShieldQuad-Shield
ConductorMaterial
Nom.Dia
CU/CCS/CCA
18AWG
CU/CCS/CCA
18AWG
CU/CCS/CCA
18AWG
DelectricMaterial
Nom.Dia(MM)
Foam PE
4.57
Foam PE
4.57
Foam PE
4.57
ShieldConstruction
Foil Material
Braid Material
Braid Coverage
Foil+Braid
AL FOIL/CU FOIL
CU/CCA/AL/TC
40%-95%
Foil+Braid+Foil
AL FOIL/CU FOIL
CU/CCA/AL/TC
40%-95%
(Foil+Braid)*2
AL FOIL/CU FOIL
CU/CCA/AL/TC
60%/40%
JacketMaterial
Nom.Thick
Nom.Dia
PVC/PE/LSZH
0.80mm
6.91±0.2mm
PVC/PE/LSZH
0.80mm
7.06±0.2mm
PVC/PE/LSZH
0.86mm
7.62±0.2mm
Electrical Characteristics
Nominal Impendence(Ω)75±3
Nominal Velocity of Propagation(%)85
Nominal Capacitance(pF/m)50
Sparker Test(VAC)4000
SRL(dB)≥20
Frequency(MHZ)Maximum(dB/100FT)Maximum(dB/100m)
50.581.90
551.605.25
1872.859.35
3003.5511.64
4504.4014.43
Attenuation(dB/100M)6005.1016.73
[@68℉/20℃]7505.6518.54
8656.1020.01
10006.5521.49
12007.9826.16
14508.4627.73
180010.3834.03
300011.4437.50
