Cat8 Category 8 network cable is the latest generation of double shielded (SFTP) network jumper. It has two wire pairs, can support 2000MHz bandwidth, and the transmission rate is as high as 40Gb/s, but its maximum transmission distance is only 30m, so it is generally used Connection of servers, switches, patch panels and other equipment in short-distance data centers.
Fire-Retardant Network System
Cold-Resistant Security System

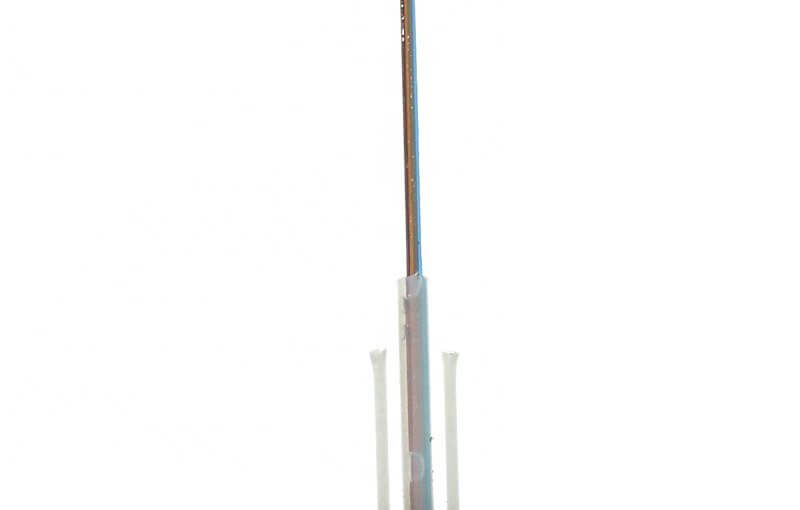

Type:GYXFTY
Optic Fiber in a central loose tube
Steel tape&loose tube bound together with heat-melting glue
Two FRP within PE sheath
Application Range: For long-distance & local communications
Installation Method: in the pipe, or aerial mounting
Application Temperature:-40℃~70℃

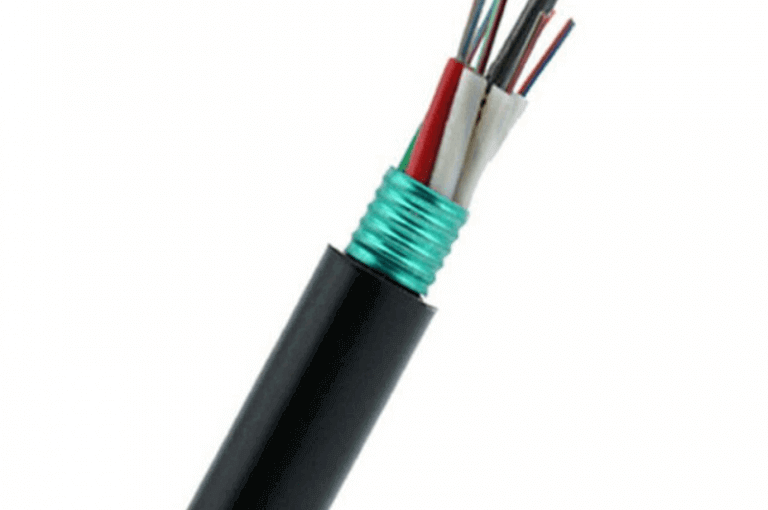

Type: GYTS
Optical fiber in loose tube
Metallic central strength member
Filling compound for SZ stranded cable cores
Plastics-coated steel tape & PE sheath bound together
Stranded steel wire for self supporting unit
Application Range: For long-distance & local communications
Installation Method: in the pipe, or aerial mounting
Application Temperature:-40℃~70℃

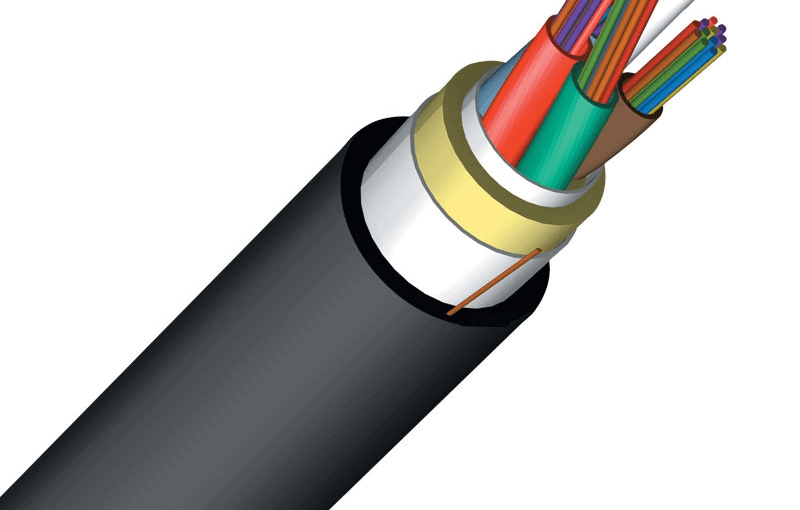

Type: ADSS
ADSS cable is the short form for All-dielectric Self-supporting Optical Cable.
ADSS fiber optical cable is loose tube stranded;
the tubes are filled with water resistant filling compound.
The tubes are standed around fiber reinforced
plastic are non-metallic central strength
member into a compact and circular cable core.
After the ADSS cable cable core is filled with filling compound,
it is covered with a thin PE inner sheath ,after two layers
of Aramid yarns which are applied in two directions over
the inner sheath as stength member,
ADSS optical fiber cable is completed with PE or AT outer sheath.

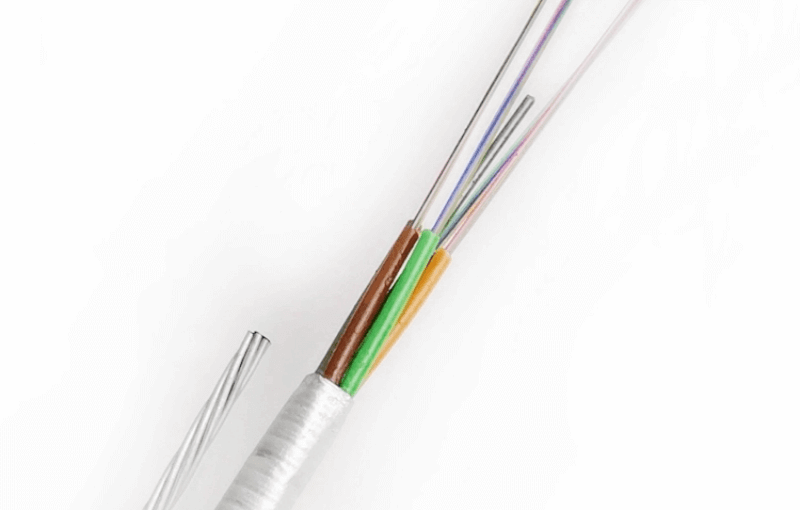

Type: GYTC8S
Optical fiber in loose tube
Metallic central strength member
Filling compound for SZ stranded cable cores
Plastics-coated steel tape & PE sheath bound together
Stranded steel wire for self supporting unit
Application Range: For long-distance & local communications
Installation Method: aerial
Application Temperature:-40℃~70℃

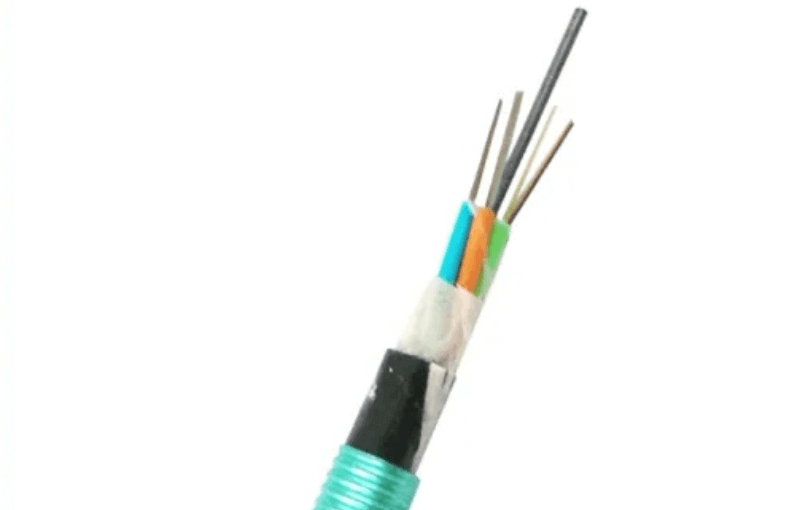

Type: GYTA53
Optical fiber in loose tube
Metallic central strength member
Filling compound for SZ stranded cable cores
Corrugated steel-plastic compound tape & PE inner sheath bound together
Corrugated steel-plastic compound tape & PE outer sheath bound together
Application Range: For long-distance & local communications
Installation Method: direct burial
Application Temperature:-40℃~70℃
