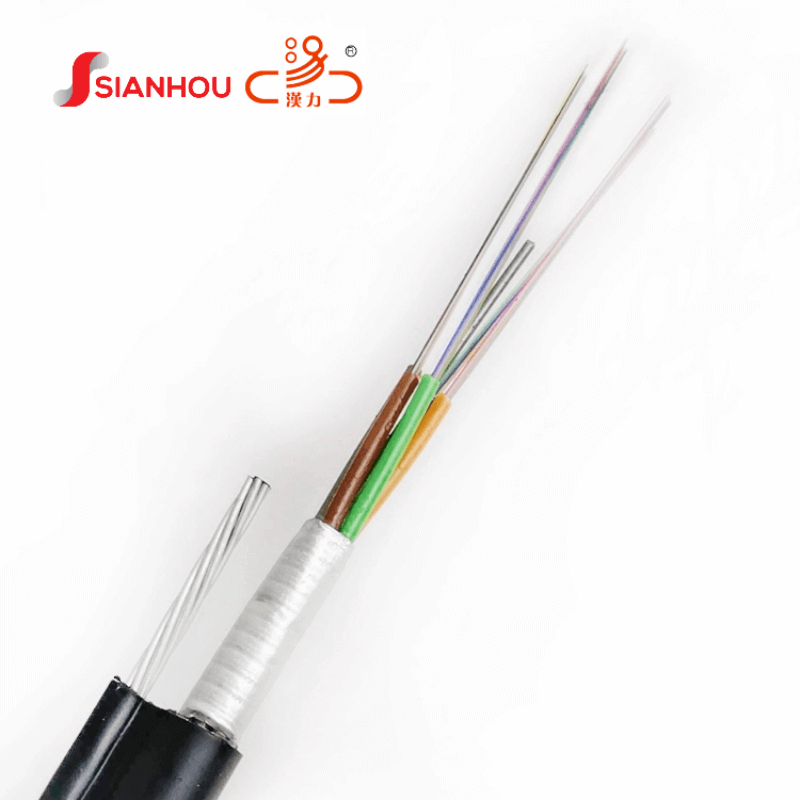

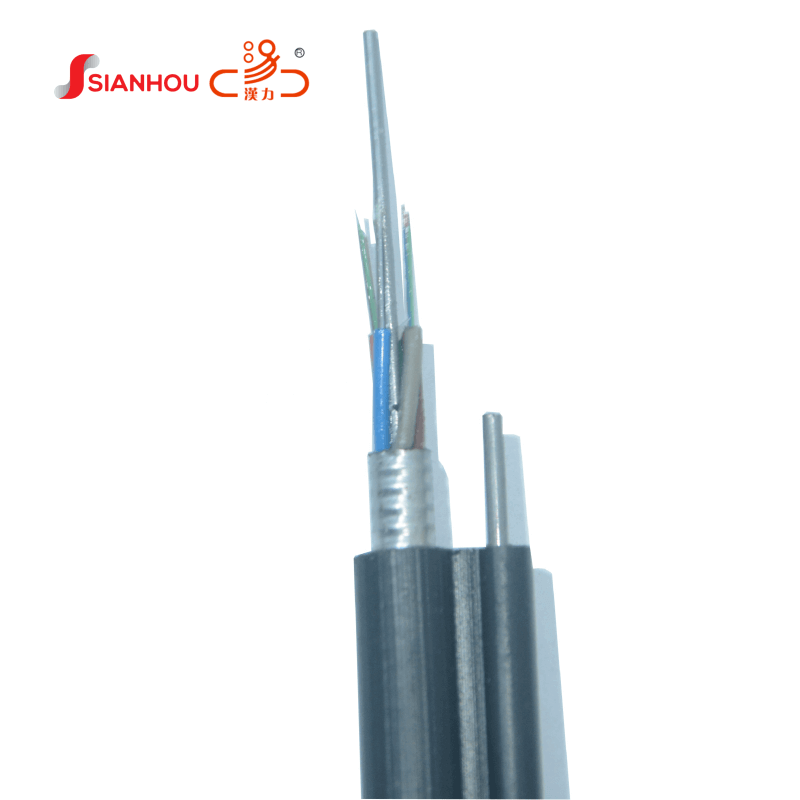

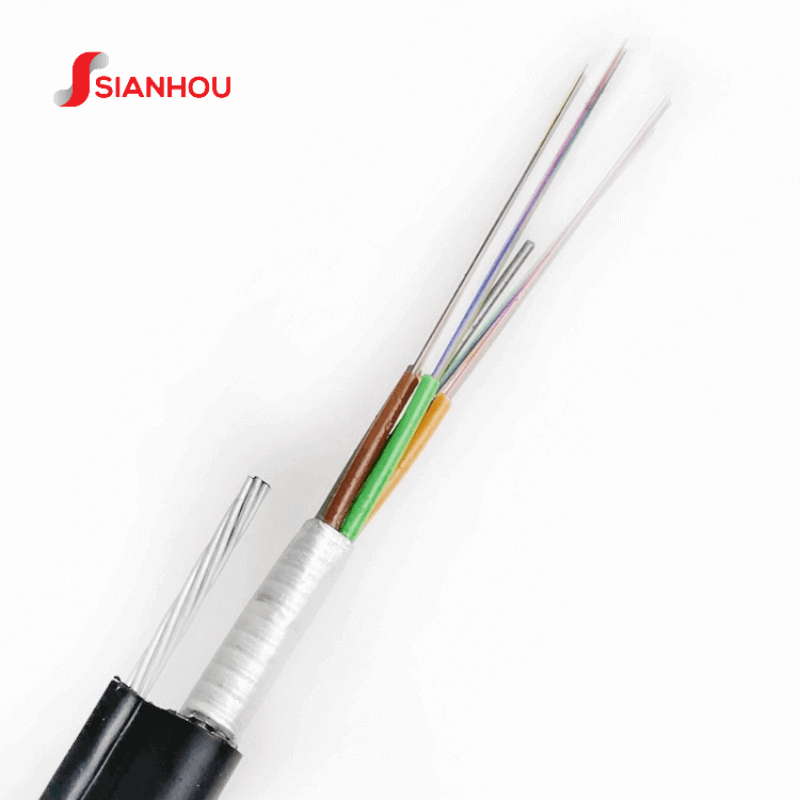

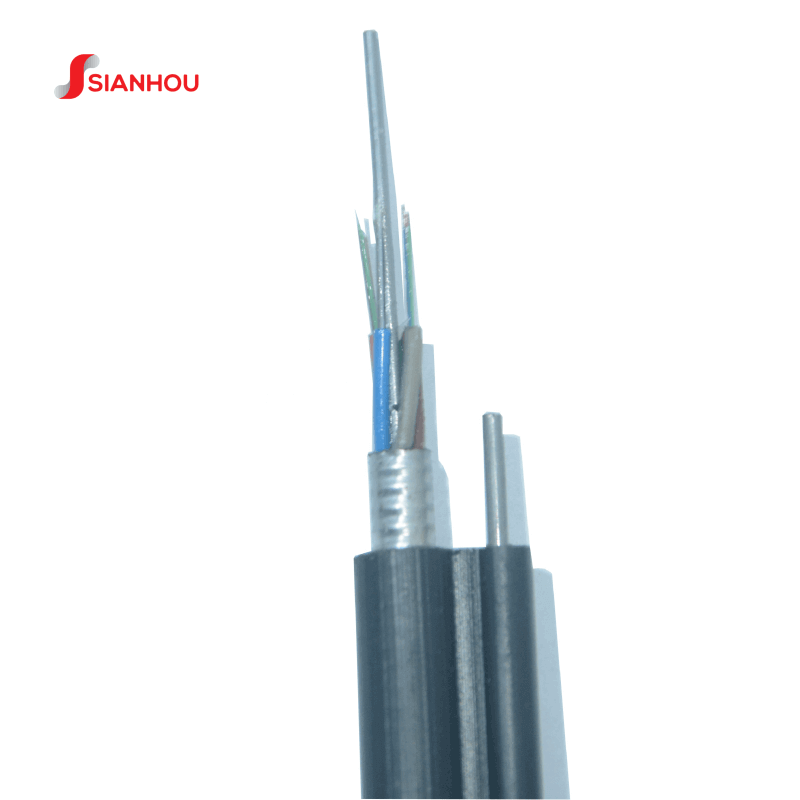

Type: GYTC8S

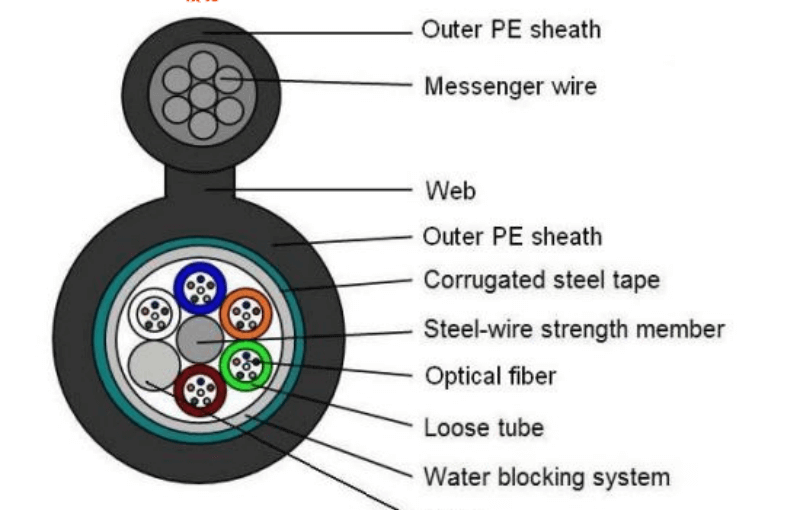

Optical fiber in loose tube
Metallic central strength member
Filling compound for SZ stranded cable cores
Plastics-coated steel tape & PE sheath bound together
Stranded steel wire for self supporting unit
Application Range: For long-distance & local communications
Installation Method: aerial
Application Temperature:-40℃~70℃
Stranded Loose Tube GYXTC8Y GYTC8S
Features:
with low attenuation loss and dispersion
The reasonable design and precision control on fiber length in losse tube ensures better mechanical performance and adaptability to the environment of FOC.
The close structure of SZ layer stranding prevents optic fiber from stress under bad environment.
It could ensure moisture & water resistant performance of FOC with filling compound filled outside stength member and inside cable core.
It could ensure much better moisture & shooting-resistant performance of FOC with corrugated steel tapewrapping.
It could ensure high tensile strength with standed steel wire as self-supporting unit.
| Technical | Parameters | |||||||
|---|---|---|---|---|---|---|---|---|
| FOC Core | FOC OD | FOC Weight | Min.Bending Radius | Min.Bending Radius | Min.Tension Allowed | Min.Tension Allowed | Min.Crush pressure | Min.Crush pressure |
| (mm) | (mm) | (N) | (N) | (N/100mm) | (N/100mm) | |||
| (s) | (mm) | (kg/km) | Static | Dynamic Short | Short Term | Long Term | Short Term | Long Term |
| 2~36 | 11.8 | 275 | 120 | 240 | 8000 | 6000 | 3000 | 1000 |
| 38~72 | 13.4 | 311 | 140 | 280 | 8000 | 6000 | 3000 | 1000 |
