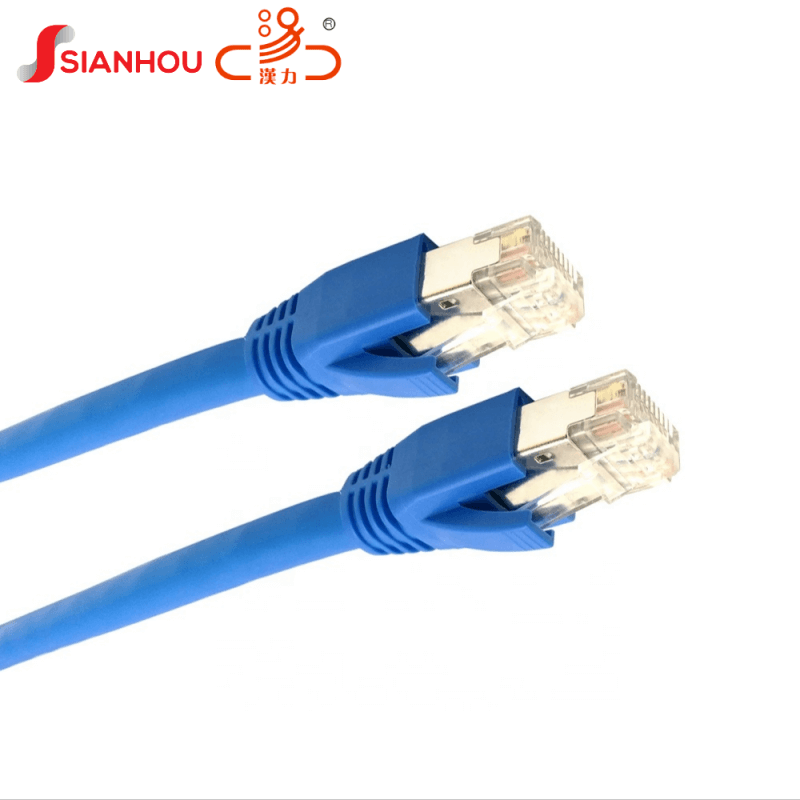

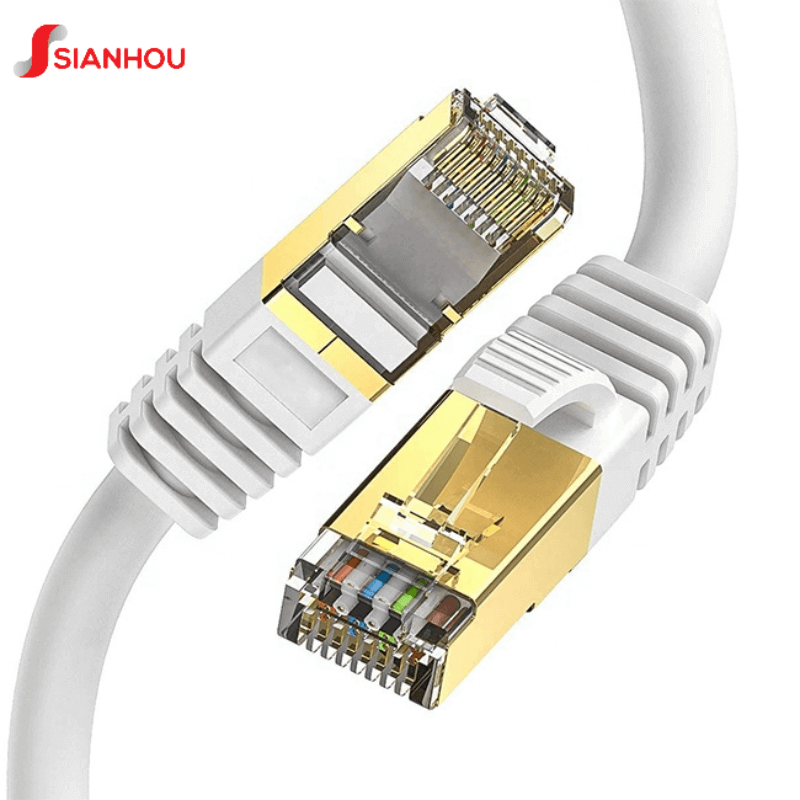

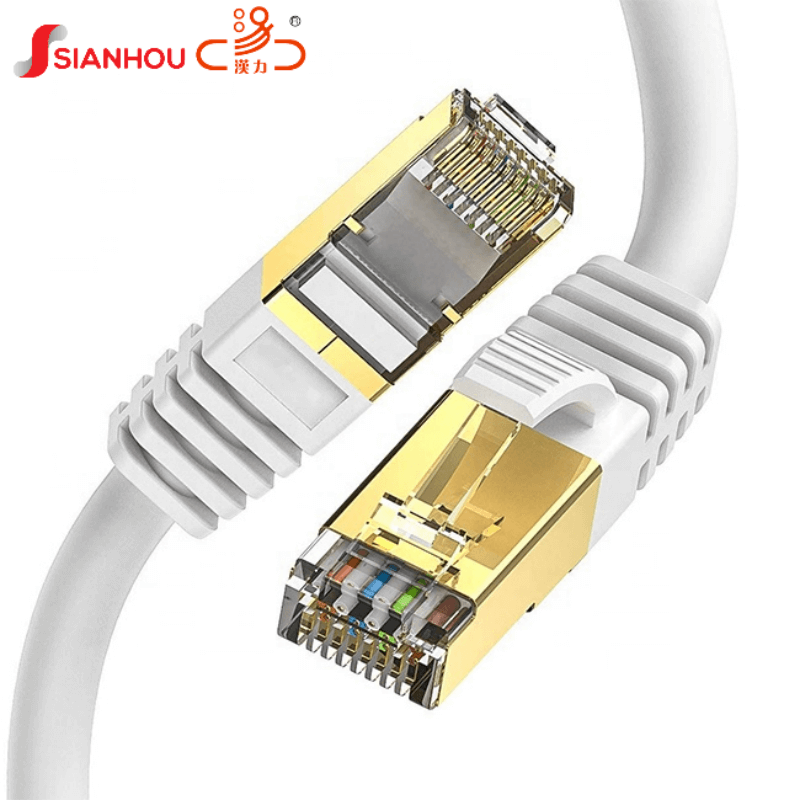

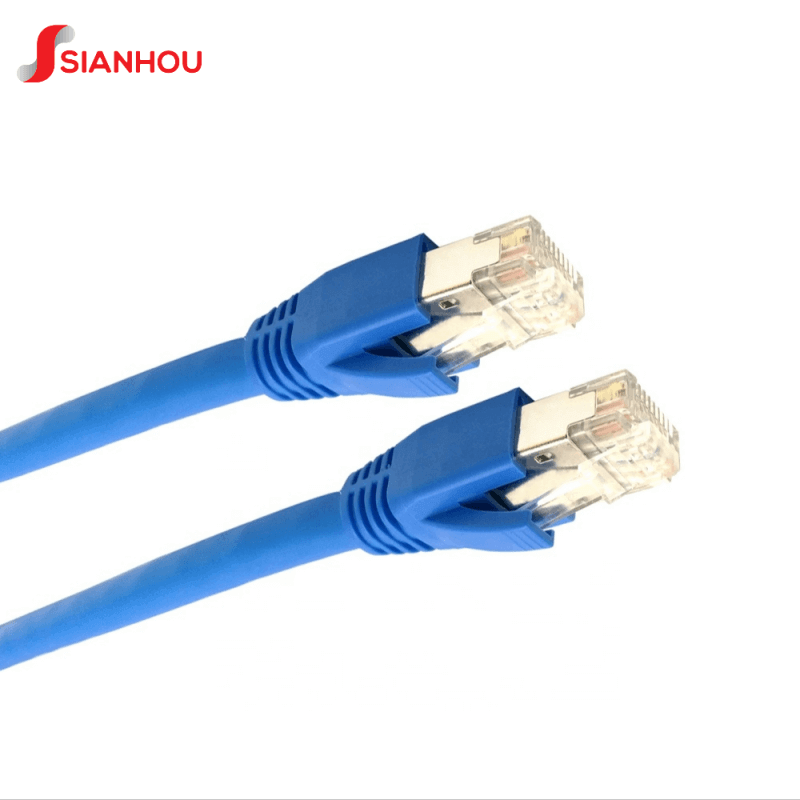

Cat8 Category 8 network cable is the latest generation of double shielded (SFTP) network jumper. It has two wire pairs, can support 2000MHz bandwidth, and the transmission rate is as high as 40Gb/s, but its maximum transmission distance is only 30m, so it is generally used Connection of servers, switches, patch panels and other equipment in short-distance data centers.
Fire-Retardant Network System
Cold-Resistant Security System
Standard Specification
Conductor Solid Bare Copper
AWG 24
Conductor Dia(mm) 0.583±0.02
Insulation Average Thickness 0.419mm(Min.at any point:0.369mm)
Jacket PVC
Sheath Average Thickness 0.05mm(Min.at any point:0.40mm)
Sheath Diameter 8.0±0.2mm
Elongation Min.100%
Tensile Strength Min.1.407Kg/mm2
Aging at 100℃ for 168Hrs Min.elongation retention:50%
Min.tensile strength:75%
Ripcord Yes
| Frequency | Attenuation | Next | Power Sum |
|---|---|---|---|
| (Mhz) | (dB/100M@20℃） | (dB,Min) | (dB,Min) |
| 1 | 2 | 80 | 77 |
| 4 | 3.7 | 80 | 77 |
| 10 | 5.9 | 80 | 77 |
| 16 | 7.4 | 80 | 77 |
| 20 | 8.3 | 80 | 77 |
| 31.25 | 10.4 | 80 | 77 |
| 62.5 | 14.9 | 75.5 | 72.5 |
| 100 | 19 | 72.4 | 69.4 |
| 155 | 24 | 69.5 | 66.5 |
| 200 | 27.5 | 67.9 | 64.9 |
| 300 | 34.2 | 65.2 | 62.2 |
| 600 | 50.1 | 60.7 | 57.7 |
