FTTH mainly provides all or part of the local loop used for last mile telecommunications.

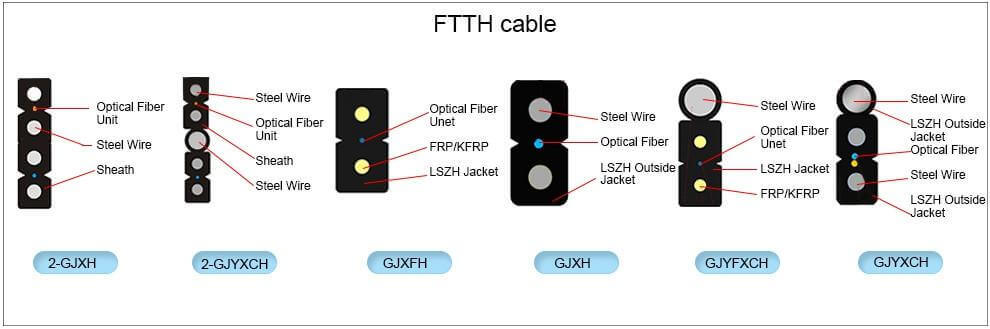

FTTH GJXH GJXFH GJYXCH GJYXFCH
| Fiber Parameters | ||
|---|---|---|
| Fiber Count | 1/2/4 | |
| Fiber Type | G652D/G657A1/G657A2 | |
| Colored Coating Fiber | Dimension Color | 245±10μm Blue/Orange/Green/Brown |
| Strength Member | Dimension Material | 0.5mm Steel/FRP |
| Self-Supporting Member | Dimension Material | 1.0mm Steel |
Jacket | Dimension Material Color | 5.0±0.2mm*2.0mm±0.1mm LSZH Black/White |
| Mechanical & Enviromental Characteristics | ||
|---|---|---|
| Items | Unite | Specification |
| Tension(Long Term) | N | 300 |
| Tension(Short Term) | N | 600 |
| Cursh(Long Term) | N/10cm | 1000 |
| Cursh(Short Term) | N/10cm | 2200 |
| Min.Bend Radius(Dynamic) | mm | 20D |
| Min.Bend Radius（Static） | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Tempreature | ℃ | -40~+70 |
| Storage Tempreature | ℃ | -40~+70 |
