Apply for a whole range of Analog cameras.
UV-Resistant Fire-Retardant
Cold-Resistant Security System

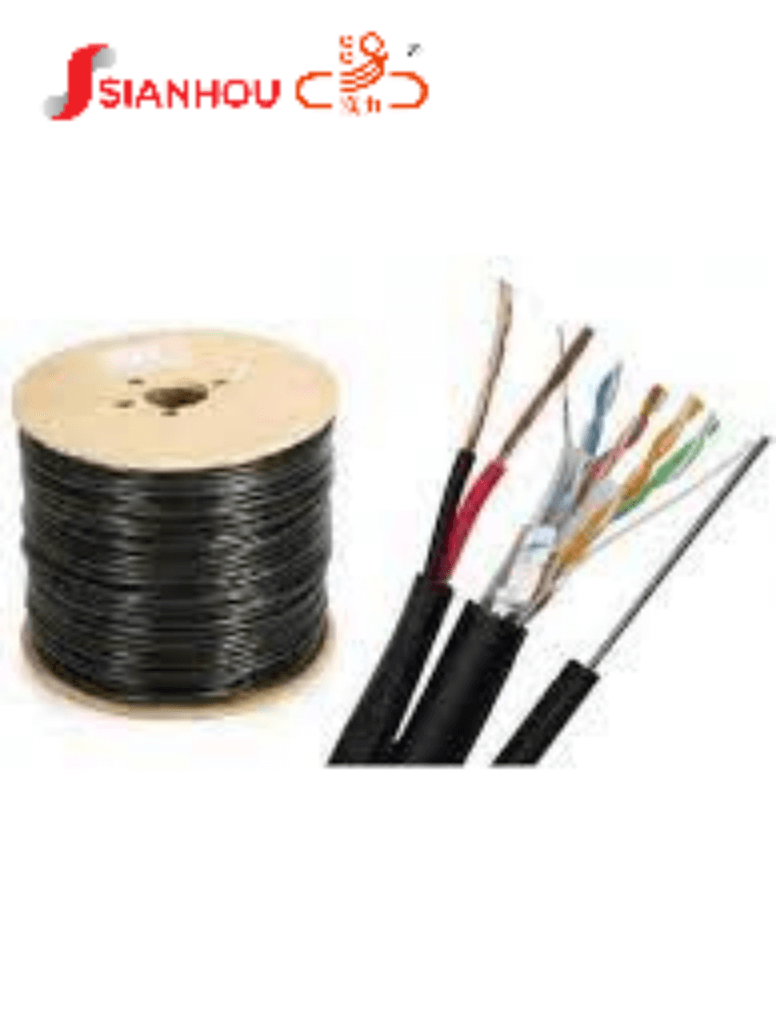

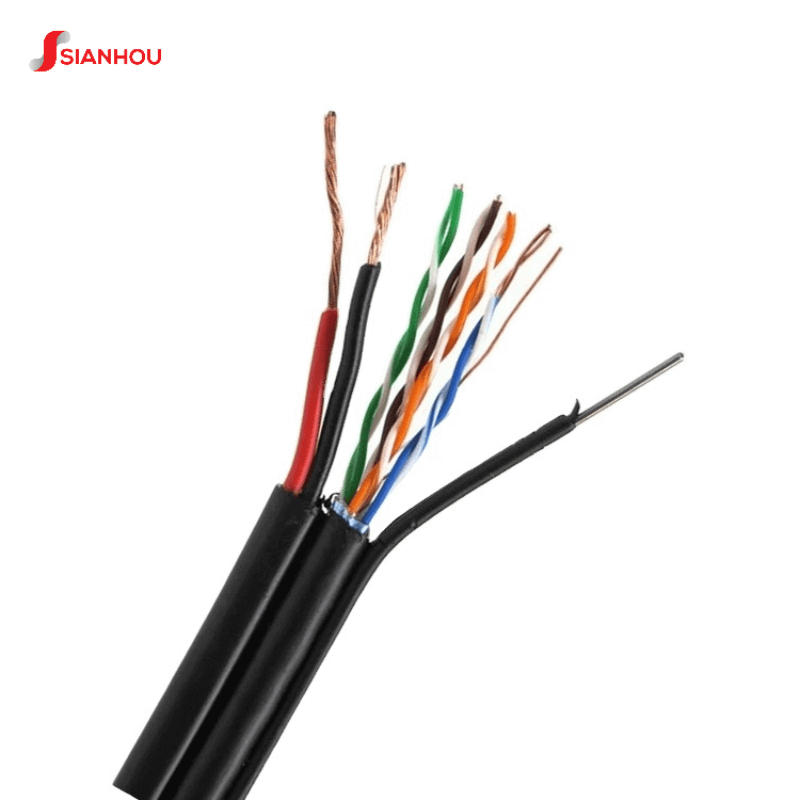

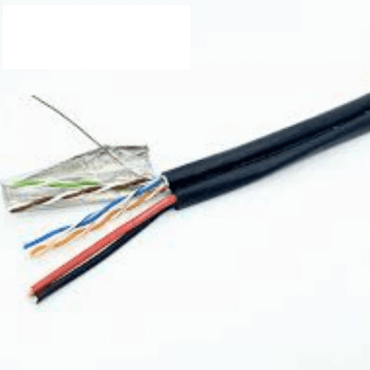

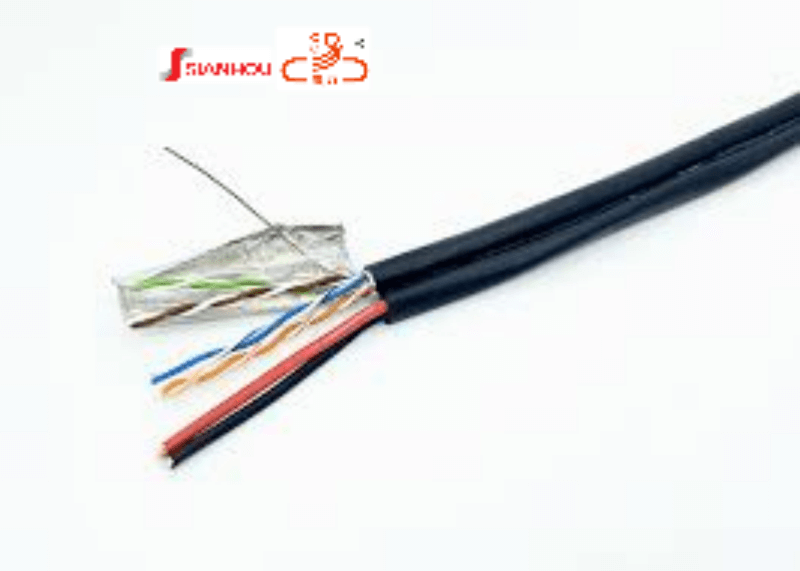

FTP CAT5E+2C , Outdoor CCTV Camera Cable
| Physical Construction | FTP CAT5E+2C | |
|---|---|---|
| Conductor | Material | BC/CCA/CCS |
| Nominal.dia | 24AWG | |
| Dielectric | Nominal.dia | 1.05mm |
| Drain Wire | Material | CCA |
| Nominal.dia | 0.4mm | |
| Shield | Material | AL/Pet |
| Foil | ||
| Jacket | Material | PVC/PE |
| Nom.Dia | 5.1mm | |
| 2 CORE POWERWIRE | Material | BC/CCA |
| Nom.Dia | 0.75mm² | |
| Messager | Nominal.dia | 1.2mm |
| Frequency | Return Loss | Attenuation | Next | Acr | Psnext | Elefxt | Pselext | Delay |
|---|---|---|---|---|---|---|---|---|
| (Mhz) | (dB) | (dB/100m) | (dB) | (dB) | (dB/100m) | (dB/100m) | (dB/100m) | (ns/100m) |
| 1 | 20 | 2 | 62.3 | 63 | 62.3 | 63.8 | 60.8 | 570 |
| 4 | 21 | 4.1 | 56.3 | 52 | 63.3 | 51.7 | 48.7 | 552 |
| 8 | 24.5 | 5.8 | 51.8 | 46 | 48.3 | 45.7 | 42.7 | 546.7 |
| 10 | 25 | 6.5 | 50.3 | 44 | 47.3 | 43.8 | 40.8 | 545.4 |
| 16 | 25 | 8.2 | 47.3 | 39 | 44.3 | 39.7 | 36.7 | 543 |
| 20 | 25 | 9.3 | 45.8 | 37 | 42.8 | 37.7 | 34.7 | 542 |
| 25 | 24.3 | 10.4 | 44.3 | 34 | 41.3 | 35.8 | 32.8 | 541.2 |
| 31.3 | 23.6 | 11.7 | 42.9 | 31 | 39.3 | 33.9 | 30.9 | 540.4 |
| 62.5 | 21.5 | 17 | 38.4 | 21 | 35.4 | 27.8 | 24.8 | 536.6 |
| 100 | 20.1 | 22 | 35.3 | 13 | 32.3 | 23.8 | 20.8 | 537.6 |
