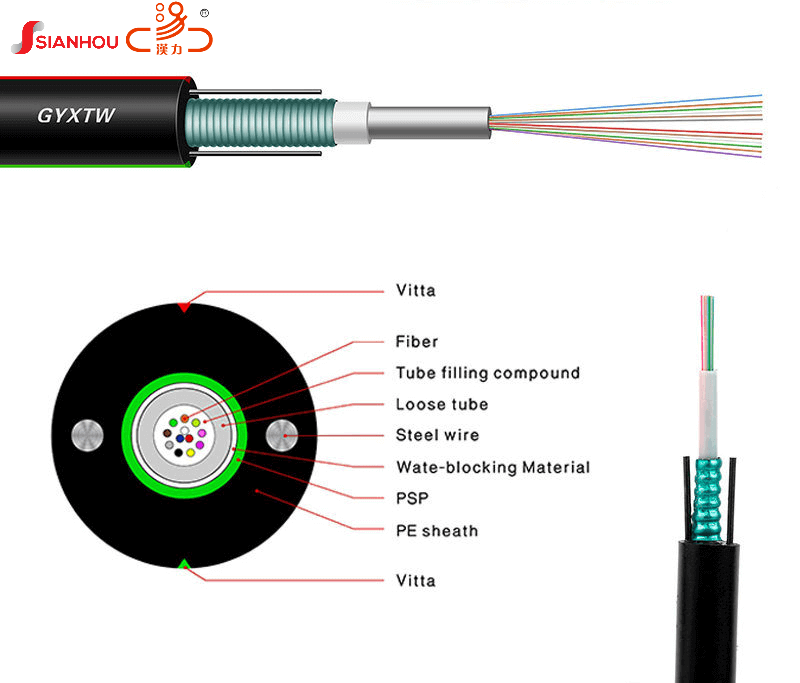

Type: GYXTW
Optic Fiber in a central loose tube
Corrugated steel tape bound PE sheath
Steel tape&loose tube bound together with heat-melting glue
Two paralleled steel wire within PE sheath
Application Range: For long-distance & local communication
Installation Method: in the pipe, or aerial mounting
Application Temperature:-40℃~70℃
Features:
with low attenuation loss and dispersion
The reasonable design and precision control on fiber length in loss tube ensure better mechanical performance and adaptability to the environment of FOC.
The close structure with steel tape&loose tube bound together with heat-resistant glue ensures moisture&water resistant performance of FOC.
With lightweight and easy for laying
With better pliability
Steel tape armor ensures better crush-resistant performance
| Technical | Parameters | |||||||
|---|---|---|---|---|---|---|---|---|
| FOC Core | FOC OD | FOC Weight | Min.Bending Radius (mm) | Min.Bending Radius (mm) | Min.Tension Allowed (N) | Min.Tension Allowed (N) | Min.Crush pressure (N/100mm) | Min.Crush pressure (N/100mm) |
| (s) | (mm) | (kg/km) | Static | Dynamic Short | Short Term | Long Term | Short Term | Long Term |
| 2~12 | 8.0 | 70 | 120 | 160 | 1500 | 600 | 1500 | 600 |
