Apply for a whole range of Analog cameras.
UV-Resistant Fire-Retardant
Cold-Resistant Security System
Specification Customized Available

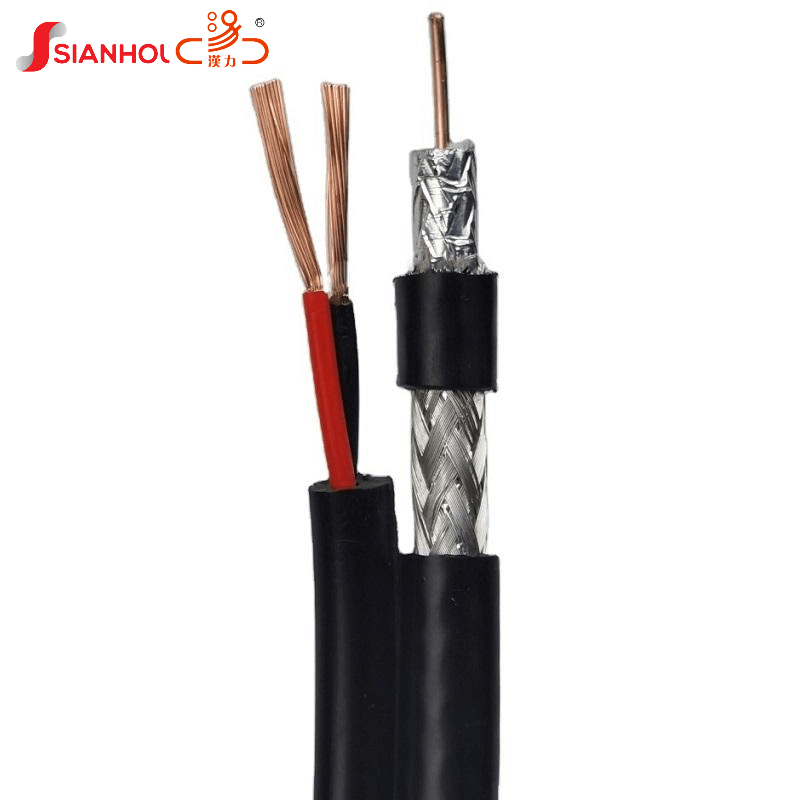

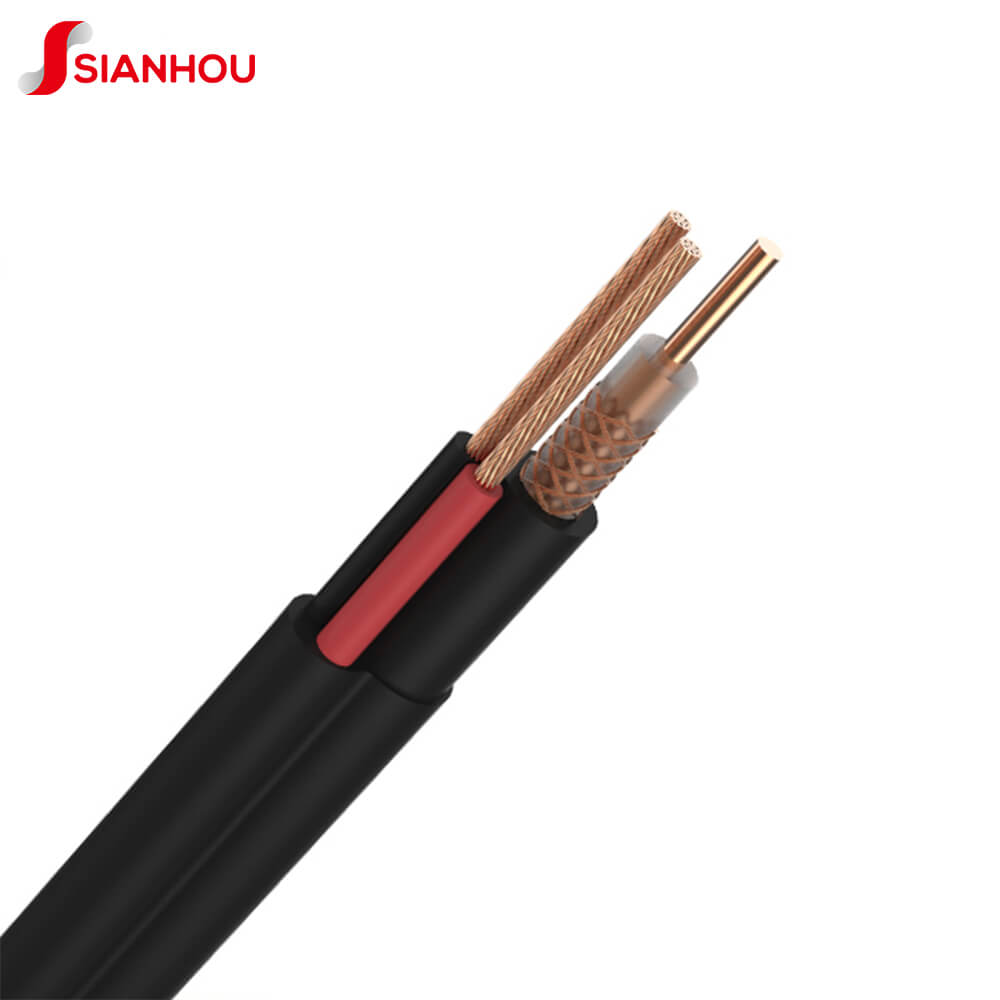

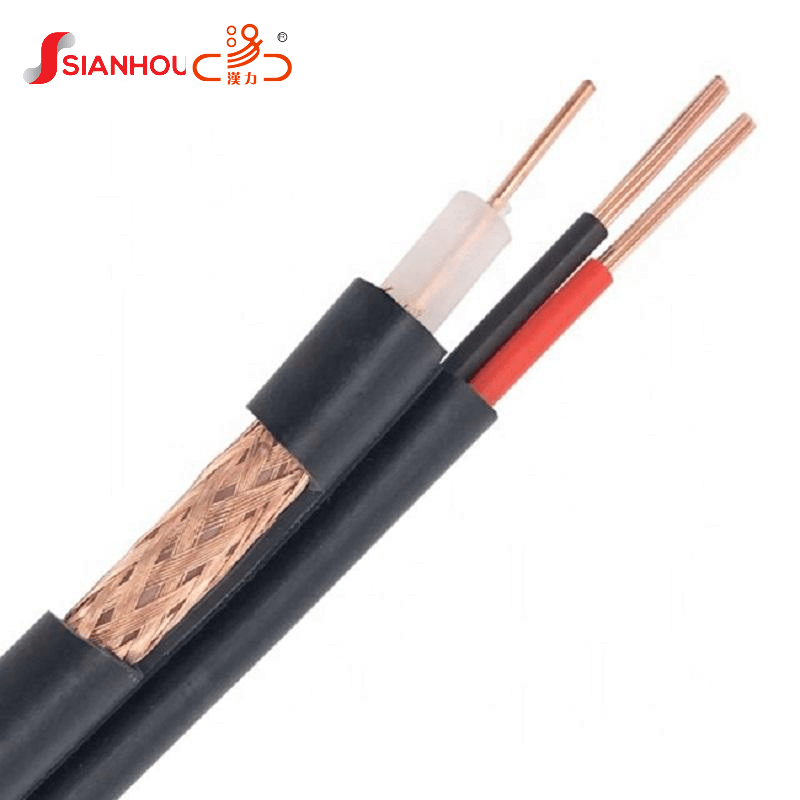

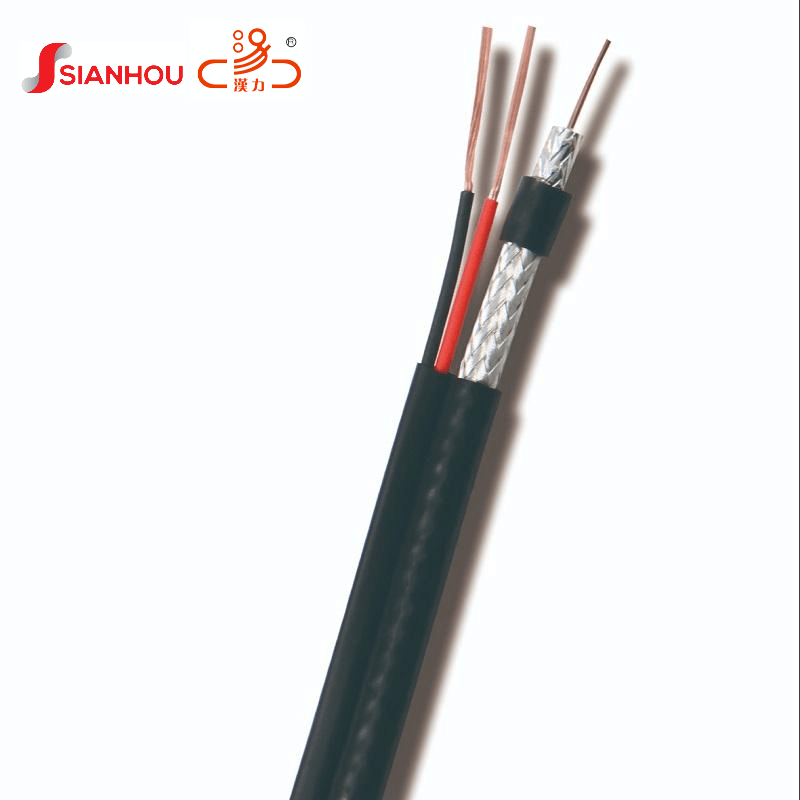

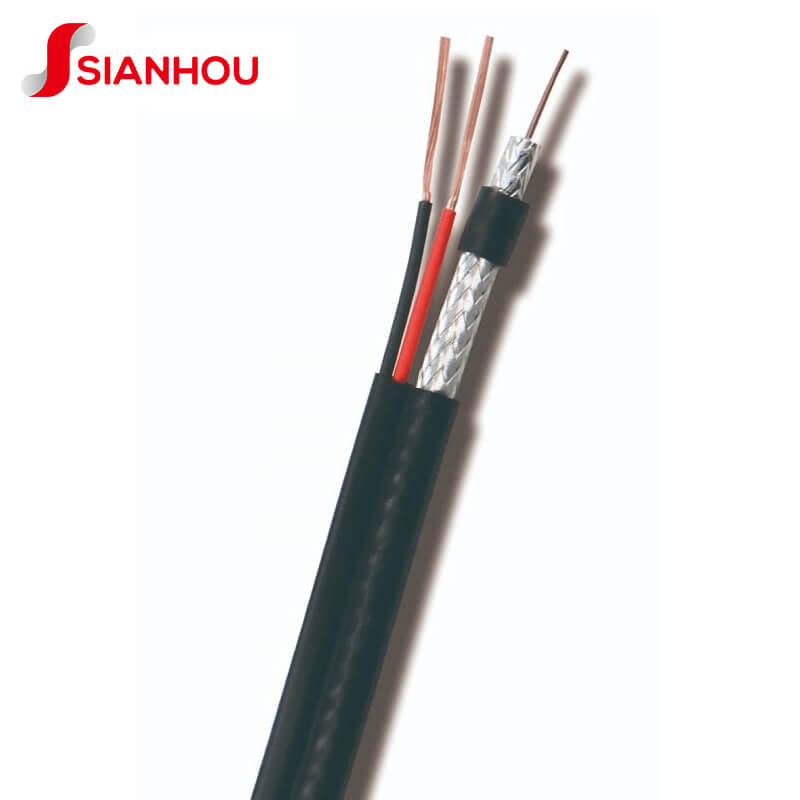

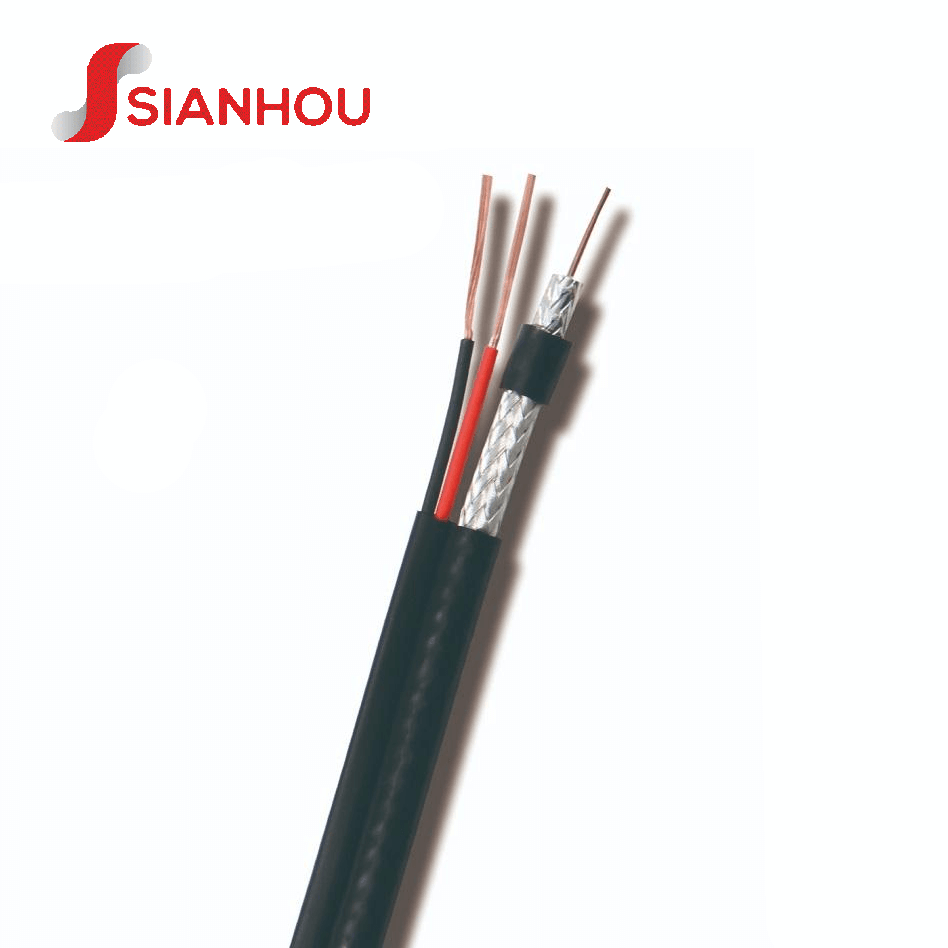

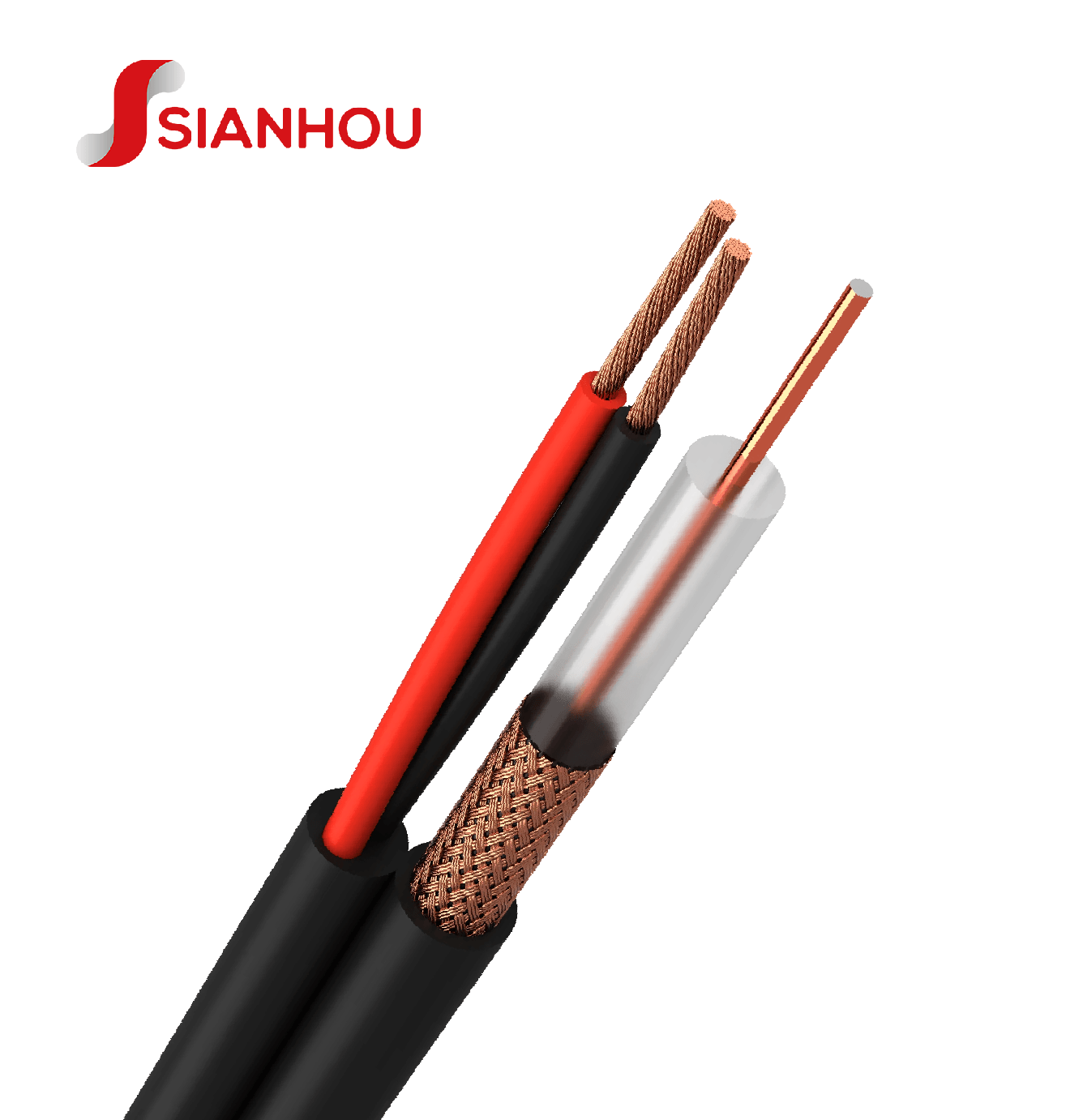

CCTV Camera Cable RG6+2C RVV0.5mm²
| Physical Construction | |||||
|---|---|---|---|---|---|
| Conductor | Material | CU/CCA/CCS | |||
| Nom.Dia | 18AWG | ||||
| Delectric | Material | Soild PE/Foam PE | |||
| Nom.Dia | 4.57mm | ||||
| Shield | Construction | With Foil/Without Foil+Braid | |||
| Foil Material | AL Foil/CU Color Foil | ||||
| Braid Material | CU/CCA/AL | ||||
| Braid Coverage | 40%-95% | ||||
| Jacket | Material | PVC | |||
| Nom.Thick | 0.8mm | ||||
| Nom.Dia | 6.91±0.2mm | ||||
| Power | Material | 2*16*0.2mm(0.5mm²）CCA/CU | |||
| Electrical Characteristics | |||||
|---|---|---|---|---|---|
| Nominal Impendence(Ω） | 75±3 | ||||
| Nominal Velocity of Propagation(%) | 85 | ||||
| Nominal Capacitance(pF/m) | 50 | ||||
| Sparker Test(VAC) | 4000 | ||||
| SRL(dB) | ≥20 | ||||
| Frequency(MHZ) | Maximum(dB/100FT) | Maximum(dB/100m) | |||
| 5 | 0.58 | 1.9 | |||
| 55 | 1.6 | 5.25 | |||
| 187 | 2.85 | 9.35 | |||
| 300 | 3.55 | 11.64 | |||
| 450 | 4.4 | 14.43 | |||
| Attenuation(dB/100M) | 600 | 5.1 | 16.73 | ||
| [@68℉/20℃] | 750 | 5.65 | 18.54 | ||
| 865 | 6.1 | 20.01 | |||
| 1000 | 6.55 | 21.49 | |||
| 1450 | 7.98 | 23.16 | |||
| 1800 | 8.46 | 27.73 | |||
| 2250 | 10.38 | 34.03 | |||
| 3000 | 11.44 | 37.5 |
